Send MessageZLLS400TA
40V|520mA (DC)
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount

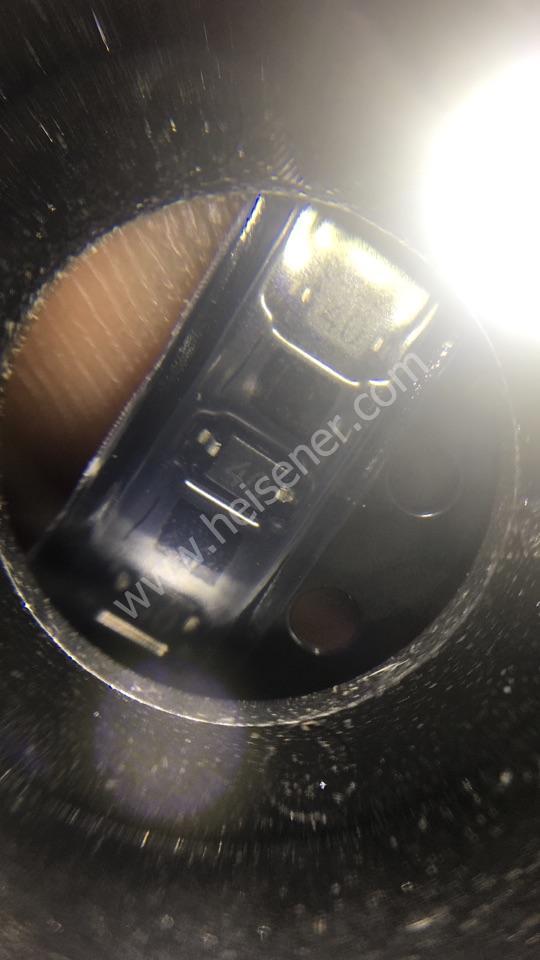

DIODE SCHOTTKY 40V 520MA SOD323
Specifications
- Brand
- Diodes Incorporated
- Package
- SC-76, SOD-323
- Packaging
- —
- Weight
- —
Total Inventory
46,700pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how ZLLS400TA from Diodes Incorporated fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 40V | |
| Current - Average Rectified (Io) | 520mA (DC) | |
| Voltage - Forward (Vf) (Max) @ If | 500mV @ 400mA | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 3ns | |
| Current - Reverse Leakage @ Vr | 10µA @ 30V | |
| Capacitance @ Vr, F | 15pF @ 30V, 1MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | SC-76, SOD-323 | |
| Supplier Device Package | SOD-323 | |
| Operating Temperature - Junction | 150°C (Max) |
