Send MessageTN2124K1-G
240V|134mA (Tj)|360mW (Tc)
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount

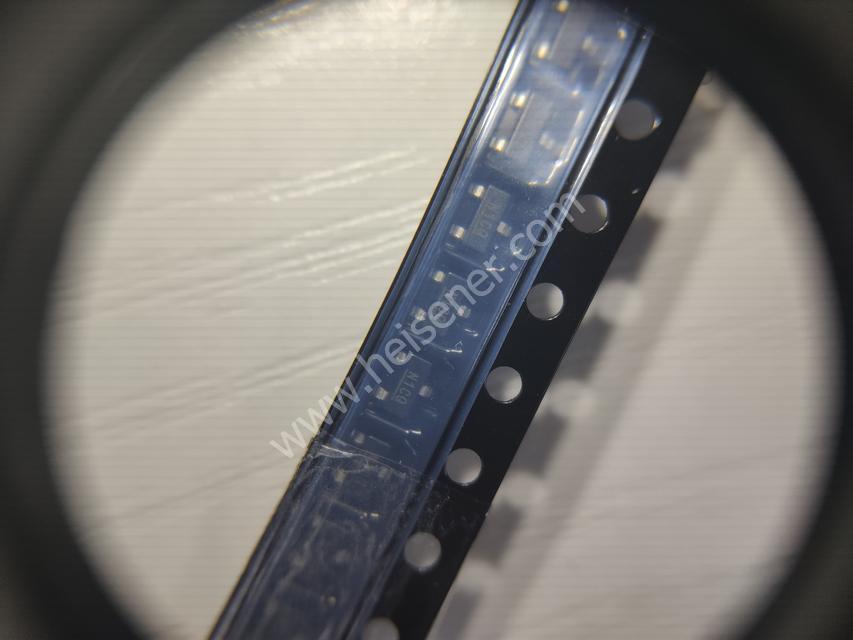

MOSFET N-CH 240V 0.134A SOT23-3
Specifications
- Brand
- Microchip Technology
- Package
- TO-236AB (SOT23)
- Packaging
- —
- Weight
- —
Total Inventory
4,955pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how TN2124K1-G from Microchip Technology fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Microchip Technology | |
| Series | - | |
| FET Type | N-Channel | |
| Technology | MOSFET (Metal Oxide) | |
| Drain to Source Voltage (Vdss) | 240V | |
| Current - Continuous Drain (Id) @ 25°C | 134mA (Tj) | |
| Drive Voltage (Max Rds On, Min Rds On) | 3V, 4.5V | |
| Rds On (Max) @ Id, Vgs | 15Ohm @ 120mA, 4.5V | |
| Vgs(th) (Max) @ Id | 2V @ 1mA | |
| Gate Charge (Qg) (Max) @ Vgs | - | |
| Vgs (Max) | ±20V | |
| Input Capacitance (Ciss) (Max) @ Vds | 50pF @ 25V | |
| FET Feature | - | |
| Power Dissipation (Max) | 360mW (Tc) | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | TO-236AB (SOT23) | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
