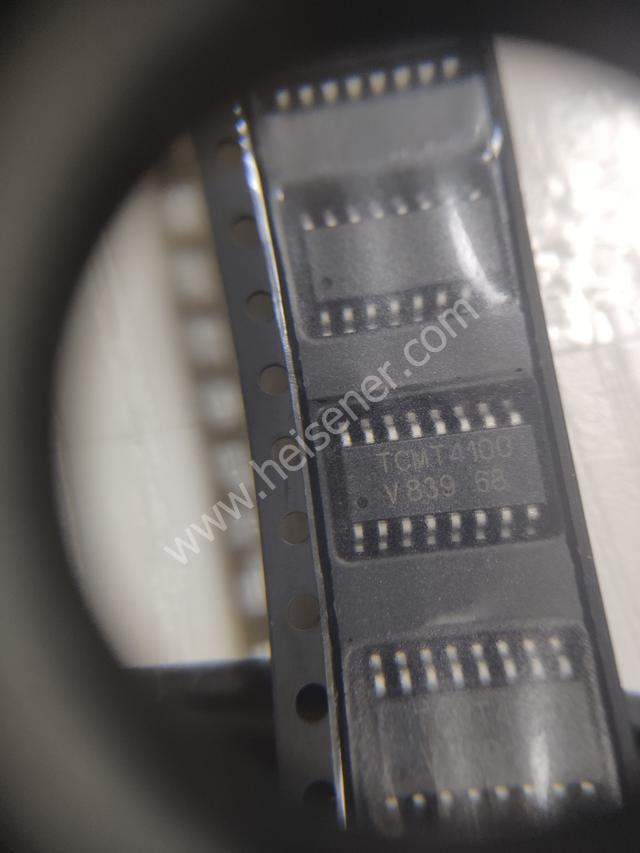

Send MessageTCMT4100
3750Vrms|50% @ 5mA
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
OPTOISO 3.75KV 4CH TRANS 16-SOP
Specifications
- Brand
- Vishay Semiconductor Opto Division
- Package
- 16-SOIC (0.173", 4.40mm Width)
- Packaging
- —
- Weight
- —
Total Inventory
21,712pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how TCMT4100 from Vishay Semiconductor Opto Division fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Vishay Semiconductor Opto Division | |
| Series | - | |
| Number of Channels | 4 | |
| Voltage - Isolation | 3750Vrms | |
| Current Transfer Ratio (Min) | 50% @ 5mA | |
| Current Transfer Ratio (Max) | 600% @ 5mA | |
| Turn On / Turn Off Time (Typ) | 6µs, 5µs | |
| Rise / Fall Time (Typ) | 3µs, 4.7µs | |
| Input Type | DC | |
| Output Type | Transistor | |
| Voltage - Output (Max) | 70V | |
| Current - Output / Channel | 50mA | |
| Voltage - Forward (Vf) (Typ) | 1.25V | |
| Current - DC Forward (If) (Max) | 60mA | |
| Vce Saturation (Max) | 300mV | |
| Operating Temperature | -40°C ~ 100°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 16-SOIC (0.173", 4.40mm Width) | |
| Supplier Device Package | 16-SOP |
