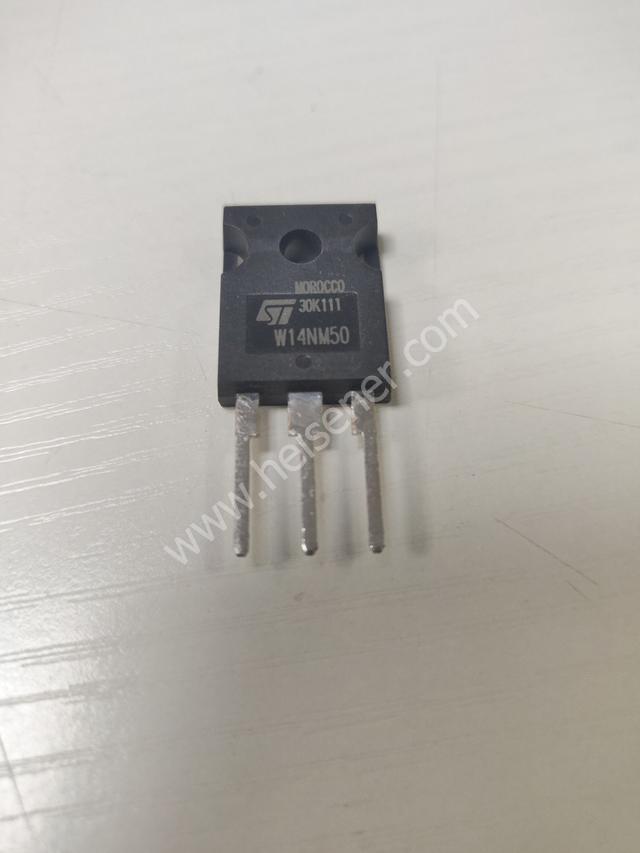

Send MessageSTW14NM50
550V|14A (Tc)|175W (Tc)
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
MOSFET N-CH 550V 14A TO-247
Specifications
- Brand
- STMicroelectronics
- Package
- TO-247-3
- Packaging
- —
- Weight
- —
Total Inventory
314pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how STW14NM50 from STMicroelectronics fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | STMicroelectronics | |
| Series | MDmesh™ | |
| FET Type | N-Channel | |
| Technology | MOSFET (Metal Oxide) | |
| Drain to Source Voltage (Vdss) | 550V | |
| Current - Continuous Drain (Id) @ 25°C | 14A (Tc) | |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | |
| Rds On (Max) @ Id, Vgs | 350mOhm @ 6A, 10V | |
| Vgs(th) (Max) @ Id | 5V @ 250µA | |
| Gate Charge (Qg) (Max) @ Vgs | 38nC @ 10V | |
| Vgs (Max) | ±30V | |
| Input Capacitance (Ciss) (Max) @ Vds | 1000pF @ 25V | |
| FET Feature | - | |
| Power Dissipation (Max) | 175W (Tc) | |
| Operating Temperature | 150°C (TJ) | |
| Mounting Type | Through Hole | |
| Supplier Device Package | TO-247-3 | |
| Package / Case | TO-247-3 |
