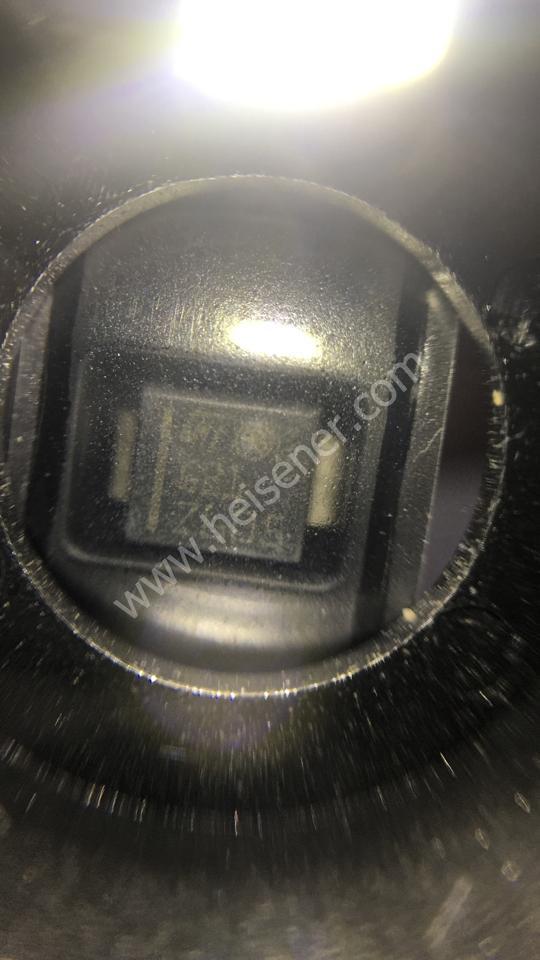

Send MessageSTPS2H100U
100V|2A
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
DIODE SCHOTTKY 100V 2A SMB
Specifications
- Brand
- STMicroelectronics
- Package
- DO-214AA, SMB
- Packaging
- —
- Weight
- —
Total Inventory
8,749pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how STPS2H100U from STMicroelectronics fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | STMicroelectronics | |
| Series | - | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 100V | |
| Current - Average Rectified (Io) | 2A | |
| Voltage - Forward (Vf) (Max) @ If | 790mV @ 2A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 1µA @ 100V | |
| Capacitance @ Vr, F | - | |
| Mounting Type | Surface Mount | |
| Package / Case | DO-214AA, SMB | |
| Supplier Device Package | SMB | |
| Operating Temperature - Junction | 175°C (Max) |
