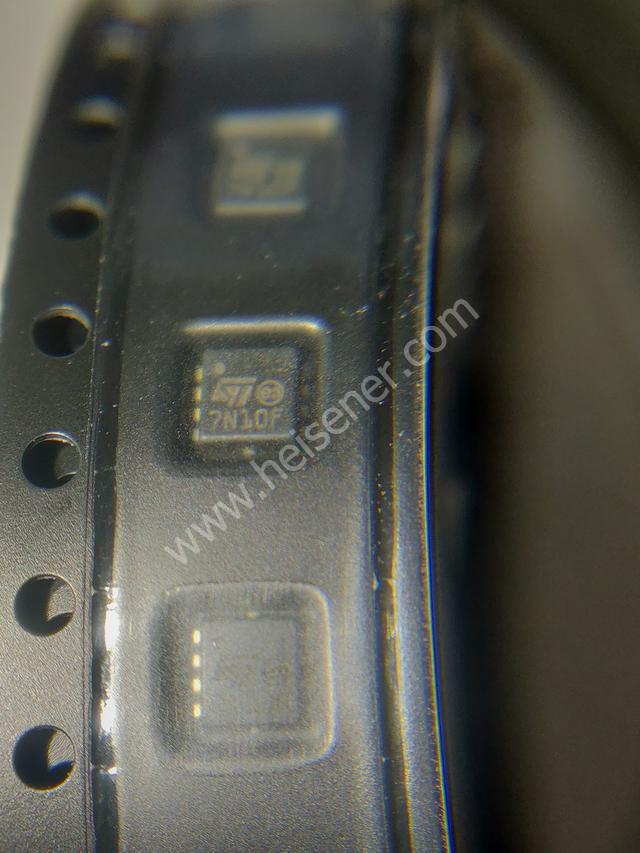

Send MessageSTL7N10F7
100V|-|2.9W (Ta), 50W (Tc)
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
MOSFET N-CH 100V 7A 8POWERFLAT
Specifications
- Brand
- STMicroelectronics
- Package
- PowerFlat™ (3.3x3.3)
- Packaging
- —
- Weight
- —
Total Inventory
341pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how STL7N10F7 from STMicroelectronics fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | STMicroelectronics | |
| Series | DeepGATE™, STripFET™ VII | |
| FET Type | N-Channel | |
| Technology | MOSFET (Metal Oxide) | |
| Drain to Source Voltage (Vdss) | 100V | |
| Current - Continuous Drain (Id) @ 25°C | - | |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | |
| Rds On (Max) @ Id, Vgs | 35mOhm @ 3.5A, 10V | |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA | |
| Gate Charge (Qg) (Max) @ Vgs | 14nC @ 10V | |
| Vgs (Max) | ±20V | |
| Input Capacitance (Ciss) (Max) @ Vds | 920pF @ 50V | |
| FET Feature | - | |
| Power Dissipation (Max) | 2.9W (Ta), 50W (Tc) | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | PowerFlat™ (3.3x3.3) | |
| Package / Case | 8-PowerVDFN |
