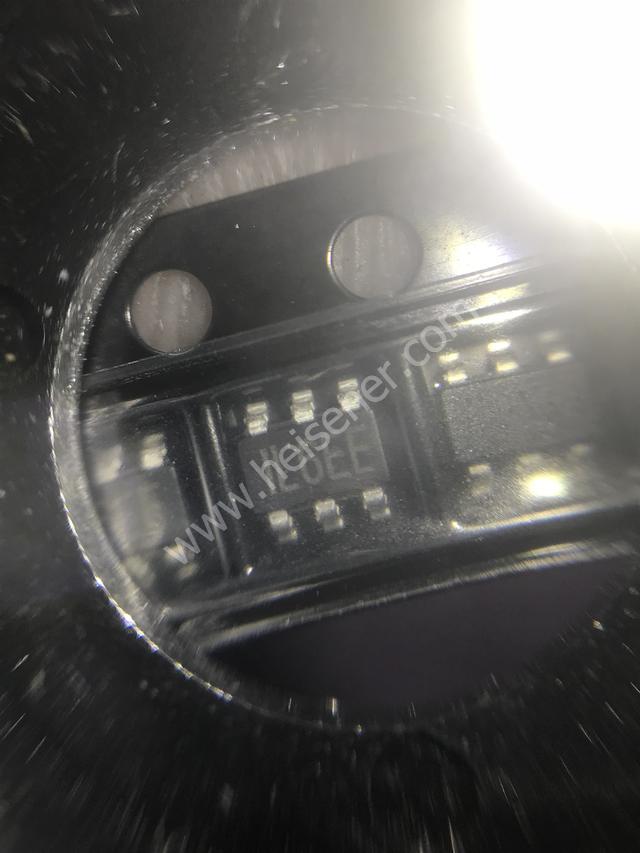

Send MessageSP3012-06UTG
5V (Max)|4A (8/20µs)|-
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
TVS DIODE 5V 7V 14UDFN
Specifications
- Brand
- Littelfuse
- Package
- 14-UFDFN
- Packaging
- —
- Weight
- —
Total Inventory
8,151pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how SP3012-06UTG from Littelfuse fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Littelfuse Inc. | |
| Series | Automotive, AEC-Q101, SP3012, SPA® | |
| Type | Steering (Rail to Rail) | |
| Unidirectional Channels | 6 | |
| Bidirectional Channels | - | |
| Voltage - Reverse Standoff (Typ) | 5V (Max) | |
| Voltage - Breakdown (Min) | - | |
| Voltage - Clamping (Max) @ Ipp | 7V (Typ) | |
| Current - Peak Pulse (10/1000µs) | 4A (8/20µs) | |
| Power - Peak Pulse | - | |
| Power Line Protection | Yes | |
| Applications | Automotive | |
| Capacitance @ Frequency | 0.5pF @ 1MHz | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 14-UFDFN | |
| Supplier Device Package | 14-UDFN (3.5x1.35) |
