Send MessageSP0503BAHTG
5.5V (Max)|-|-
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount

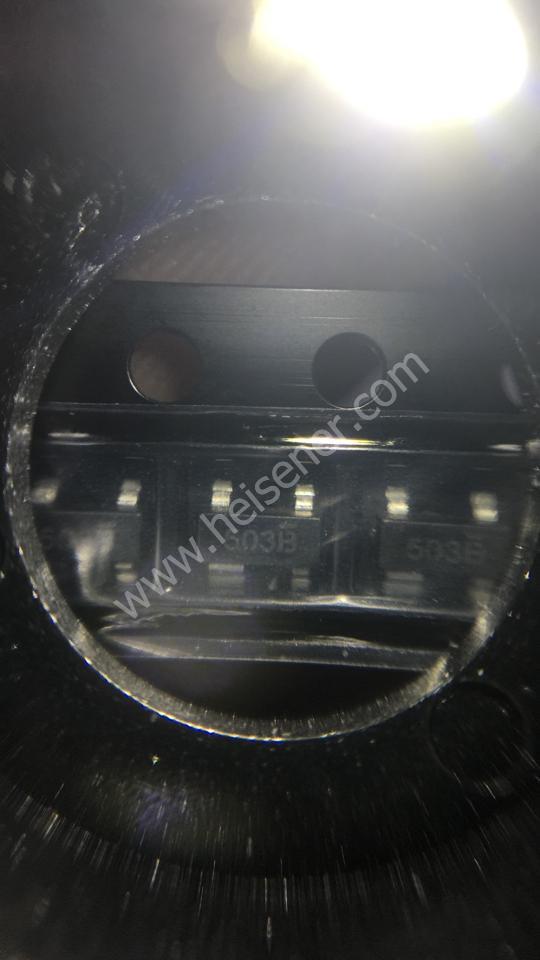

TVS DIODE 5.5V 8.5V SOT143-4
Specifications
- Brand
- Littelfuse
- Package
- TO-253-4, TO-253AA
- Packaging
- —
- Weight
- —
Total Inventory
204,351pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how SP0503BAHTG from Littelfuse fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Littelfuse Inc. | |
| Series | SP05, SPA® | |
| Type | Zener | |
| Unidirectional Channels | 3 | |
| Bidirectional Channels | - | |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) | |
| Voltage - Breakdown (Min) | - | |
| Voltage - Clamping (Max) @ Ipp | 8.5V | |
| Current - Peak Pulse (10/1000µs) | - | |
| Power - Peak Pulse | - | |
| Power Line Protection | No | |
| Applications | General Purpose | |
| Capacitance @ Frequency | - | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-253-4, TO-253AA | |
| Supplier Device Package | SOT-143-4 |
