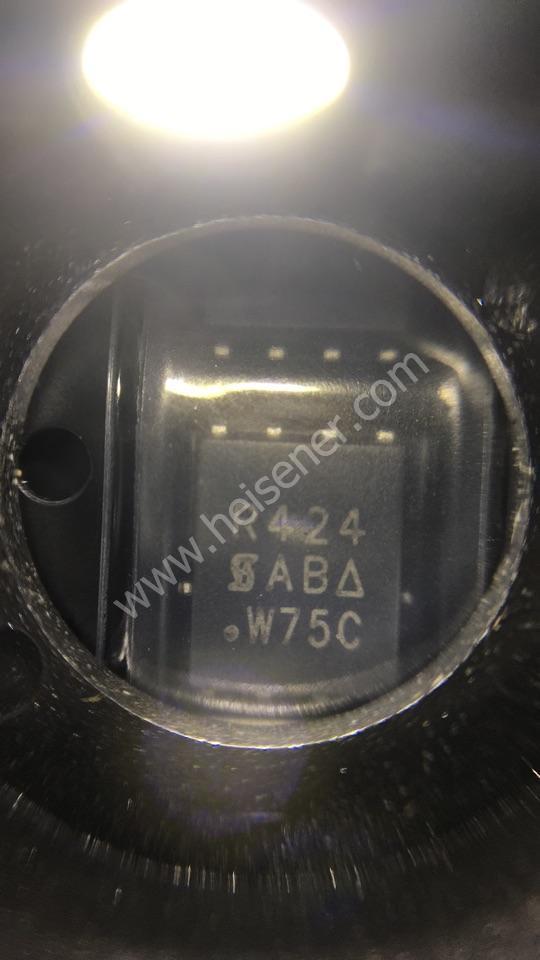

Send MessageSIR424DP-T1-GE3
20V|30A (Tc)|4.8W (Ta), 41.7W (Tc)
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
MOSFET N-CH 20V 30A PPAK SO-8
Specifications
- Brand
- Vishay Siliconix
- Package
- PowerPAK® SO-8
- Packaging
- —
- Weight
- —
Total Inventory
18,205pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how SIR424DP-T1-GE3 from Vishay Siliconix fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Vishay Siliconix | |
| Series | TrenchFET® | |
| FET Type | N-Channel | |
| Technology | MOSFET (Metal Oxide) | |
| Drain to Source Voltage (Vdss) | 20V | |
| Current - Continuous Drain (Id) @ 25°C | 30A (Tc) | |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | |
| Rds On (Max) @ Id, Vgs | 5.5mOhm @ 20A, 10V | |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | |
| Gate Charge (Qg) (Max) @ Vgs | 35nC @ 10V | |
| Vgs (Max) | ±20V | |
| Input Capacitance (Ciss) (Max) @ Vds | 1250pF @ 10V | |
| FET Feature | - | |
| Power Dissipation (Max) | 4.8W (Ta), 41.7W (Tc) | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | PowerPAK® SO-8 | |
| Package / Case | PowerPAK® SO-8 |
Recommended Products
CAP CER 100PF 63V C0G/NP0 2225
CPS22-NO00A10-SNCCWTWF-AI0WBVAR-W1043-S
SWITCH PUSH SPST-NO 100MA 42V
SWITCH ROCKER SPST 15A 125V
NMP CONFIGURABLE POWER SUPPLY 12
IC REG LINEAR 2.8V 300MA 6XDFN
IC OPAMP GP 2 CIRCUIT 8VSSOP
TAB, 8MM NG1 PLUS
CONN HEADER 40POS .100" DUAL TIN
CONN RCPT FMALE 6POS GOLD CRIMP
CONN RCPT HSG MALE 10POS PNL MT
Datasheet & Documents
sir424dp-t1-ge3.pdf
PDF Document · 13 pages
