Send MessageSE5534AN
500µV|400nA
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount

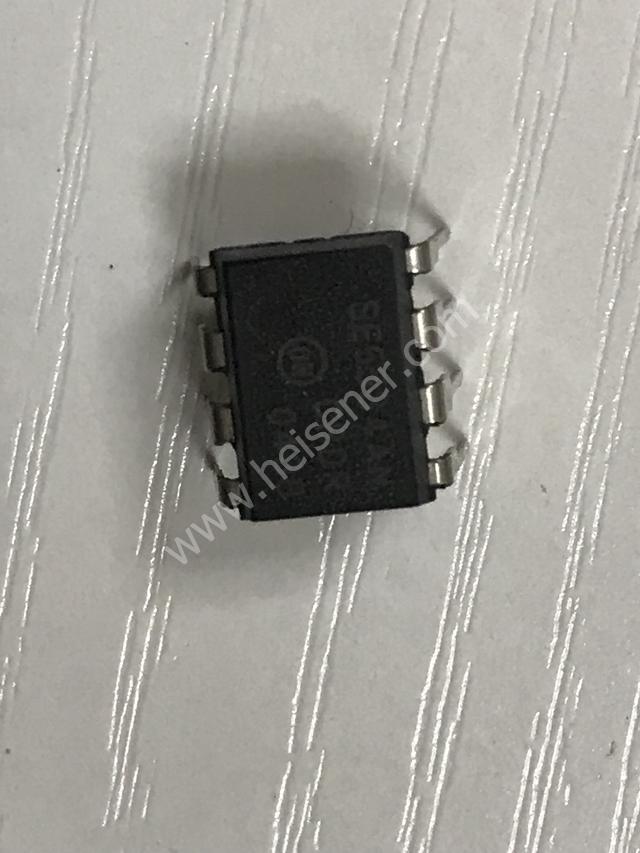

IC OPAMP GP 1 CIRCUIT 8DIP
Specifications
- Brand
- ON Semiconductor
- Package
- 8-DIP (0.300", 7.62mm)
- Packaging
- —
- Weight
- —
Total Inventory
319pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how SE5534AN from ON Semiconductor fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Amplifier Type | General Purpose | |
| Number of Circuits | 1 | |
| Output Type | - | |
| Slew Rate | 13V/µs | |
| Gain Bandwidth Product | 10MHz | |
| -3db Bandwidth | - | |
| Current - Input Bias | 400nA | |
| Voltage - Input Offset | 500µV | |
| Current - Supply | 4mA | |
| Current - Output / Channel | 38mA | |
| Voltage - Supply, Single/Dual (±) | ±3V ~ 20V | |
| Operating Temperature | -55°C ~ 125°C | |
| Mounting Type | Through Hole | |
| Package / Case | 8-DIP (0.300", 7.62mm) | |
| Supplier Device Package | 8-PDIP |
