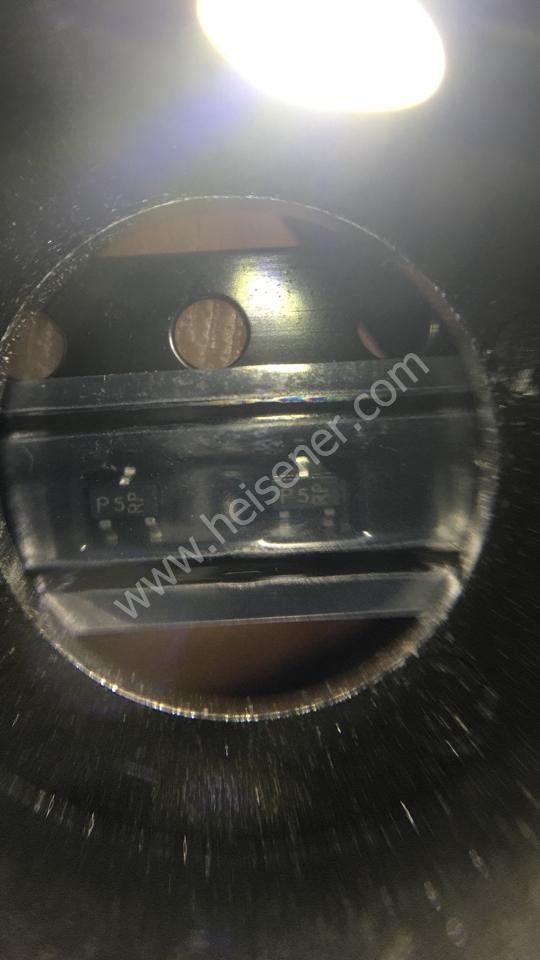

Send MessageRCLAMP0502BATCT
5V (Max)|5A (8/20µs)|125W
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
TVS DIODE 5V 25V SC75
Specifications
- Brand
- Semtech
- Package
- SC-75, SOT-416
- Packaging
- —
- Weight
- —
Total Inventory
38,709pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how RCLAMP0502BATCT from Semtech fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Semtech Corporation | |
| Series | RailClamp® | |
| Type | Zener | |
| Unidirectional Channels | 2 | |
| Bidirectional Channels | - | |
| Voltage - Reverse Standoff (Typ) | 5V (Max) | |
| Voltage - Breakdown (Min) | 6V | |
| Voltage - Clamping (Max) @ Ipp | 25V | |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) | |
| Power - Peak Pulse | 125W | |
| Power Line Protection | No | |
| Applications | General Purpose | |
| Capacitance @ Frequency | 1.2pF @ 1MHz | |
| Operating Temperature | -55°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | SC-75, SOT-416 | |
| Supplier Device Package | SC-75 (SOT523) |
