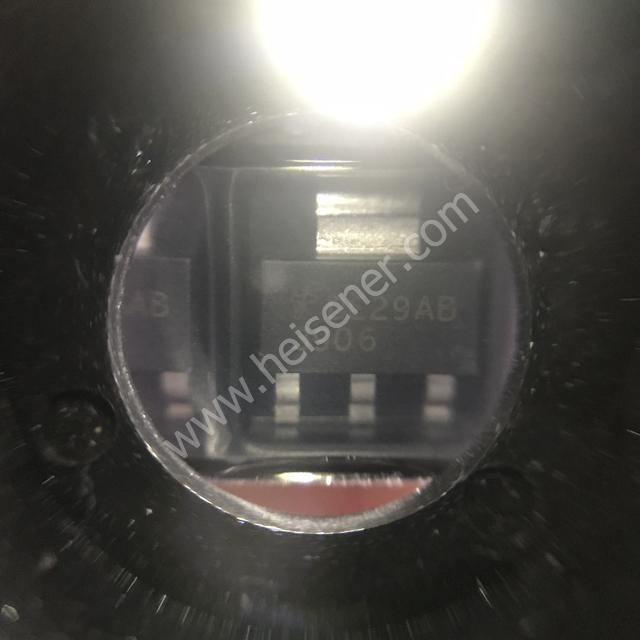

Send MessagePZT3906
40V|200mA|1W
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
TRANS PNP 40V 0.2A SOT223
Specifications
- Brand
- Fairchild/ON Semiconductor
- Package
- TO-261-4, TO-261AA
- Packaging
- —
- Weight
- —
Total Inventory
2,981,808pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how PZT3906 from Fairchild/ON Semiconductor fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Fairchild/ON Semiconductor | |
| Series | - | |
| Transistor Type | PNP | |
| Current - Collector (Ic) (Max) | 200mA | |
| Voltage - Collector Emitter Breakdown (Max) | 40V | |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 5mA, 50mA | |
| Current - Collector Cutoff (Max) | - | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA, 1V | |
| Power - Max | 1W | |
| Frequency - Transition | 250MHz | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-261-4, TO-261AA | |
| Supplier Device Package | SOT-223-4 |
