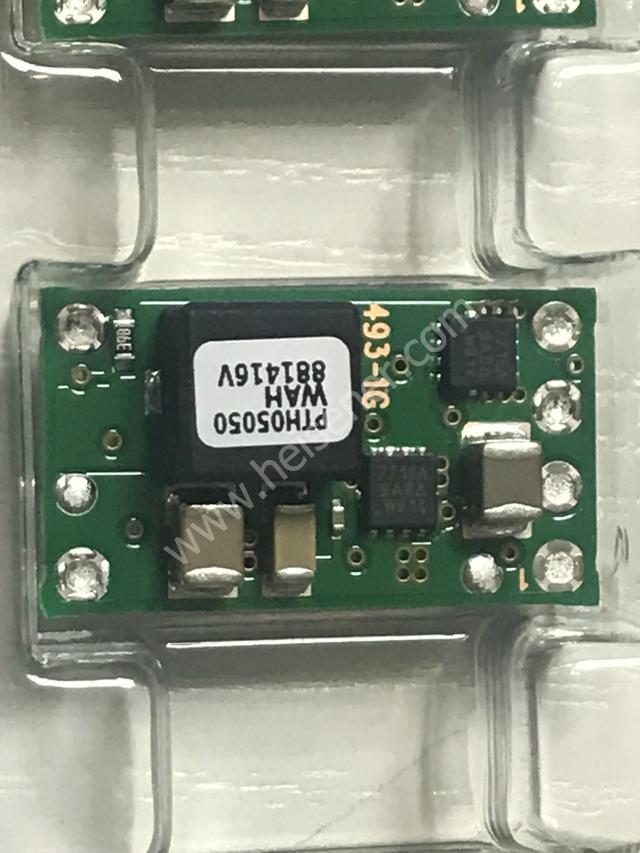

Send MessagePTH05050WAH
4.5V|6A|21W
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
DC DC CONVERTER 0.8-3.6V 21W
Specifications
- Brand
- Artesyn Embedded Technologies
- Package
- 6-DIP Module
- Packaging
- —
- Weight
- —
Total Inventory
114pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how PTH05050WAH from Artesyn Embedded Technologies fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Artesyn Embedded Technologies | |
| Series | PTH05050W (21W) | |
| Type | Non-Isolated PoL Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 5.5V | |
| Voltage - Output 1 | 0.8 ~ 3.6V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 6A | |
| Power (Watts) | 21W | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | UVLO | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 95% | |
| Mounting Type | Through Hole | |
| Package / Case | 6-DIP Module | |
| Size / Dimension | 0.87" L x 0.50" W x 0.34" H (22.1mm x 12.7mm x 8.6mm) | |
| Supplier Device Package | - | |
| Control Features | - |
