Send MessagePMV65XP-215
20V|2.8A (Ta)|480mW (Ta)
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount

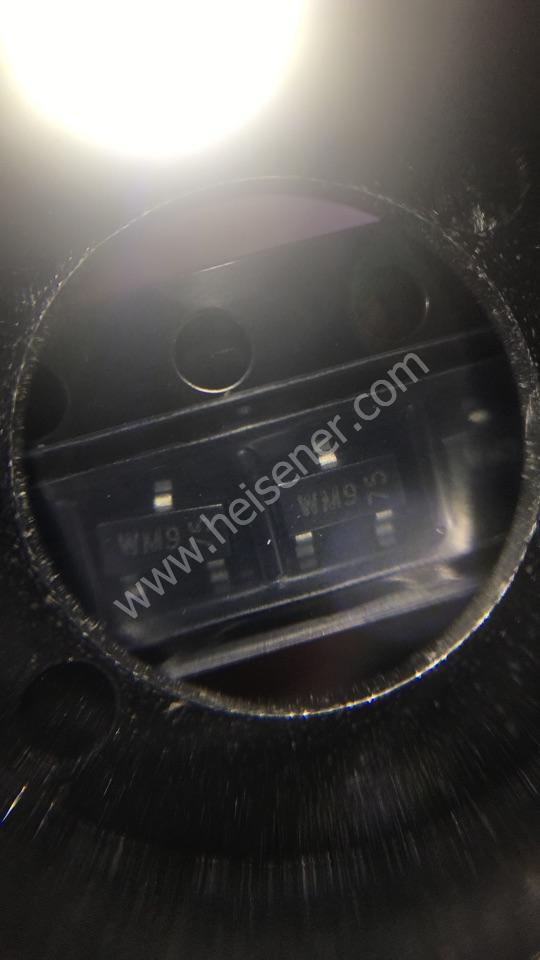

MOSFET P-CH 20V 2.8A SOT-23
Specifications
- Brand
- Nexperia
- Package
- TO-236AB
- Packaging
- —
- Weight
- —
Total Inventory
169,726pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how PMV65XP-215 from Nexperia fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Nexperia USA Inc. | |
| Series | - | |
| FET Type | P-Channel | |
| Technology | MOSFET (Metal Oxide) | |
| Drain to Source Voltage (Vdss) | 20V | |
| Current - Continuous Drain (Id) @ 25°C | 2.8A (Ta) | |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V | |
| Rds On (Max) @ Id, Vgs | 74mOhm @ 2.8A, 4.5V | |
| Vgs(th) (Max) @ Id | 900mV @ 250µA | |
| Gate Charge (Qg) (Max) @ Vgs | 7.7nC @ 4.5V | |
| Vgs (Max) | ±12V | |
| Input Capacitance (Ciss) (Max) @ Vds | 744pF @ 20V | |
| FET Feature | - | |
| Power Dissipation (Max) | 480mW (Ta) | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | TO-236AB | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
