Send MessageNANOSMDC035F-2
16V|20A
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount

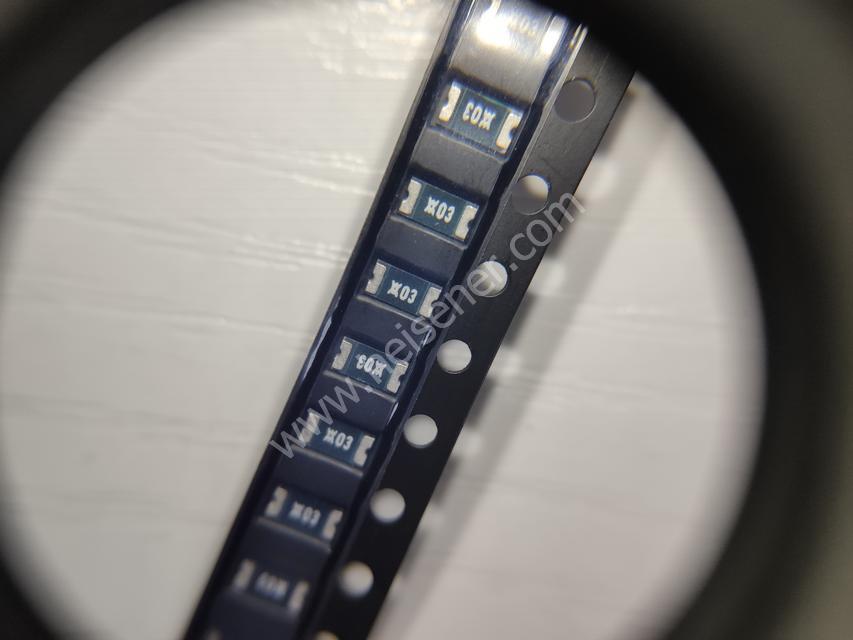

PTC RESET FUSE 16V 350MA 1206
Specifications
- Brand
- Littelfuse
- Package
- 1206 (3216 Metric), Concave
- Packaging
- —
- Weight
- —
Total Inventory
48,932pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how NANOSMDC035F-2 from Littelfuse fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Littelfuse Inc. | |
| Series | PolySwitch®, nanoSMD | |
| Type | Polymeric | |
| Voltage - Max | 16V | |
| Current - Max | 20A | |
| Current - Hold (Ih) (Max) | 350mA | |
| Current - Trip (It) | 750mA | |
| Time to Trip | 100ms | |
| Resistance - Initial (Ri) (Min) | 450 mOhms | |
| Resistance - Post Trip (R1) (Max) | 1.35 Ohms | |
| Resistance - 25°C (Typ) | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Ratings | - | |
| Mounting Type | Surface Mount | |
| Package / Case | 1206 (3216 Metric), Concave | |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.59mm) | |
| Height - Seated (Max) | - | |
| Thickness (Max) | 0.032" (0.82mm) | |
| Lead Spacing | - |
