Send MessageNANOSMDC020F-2
24V|100A
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount

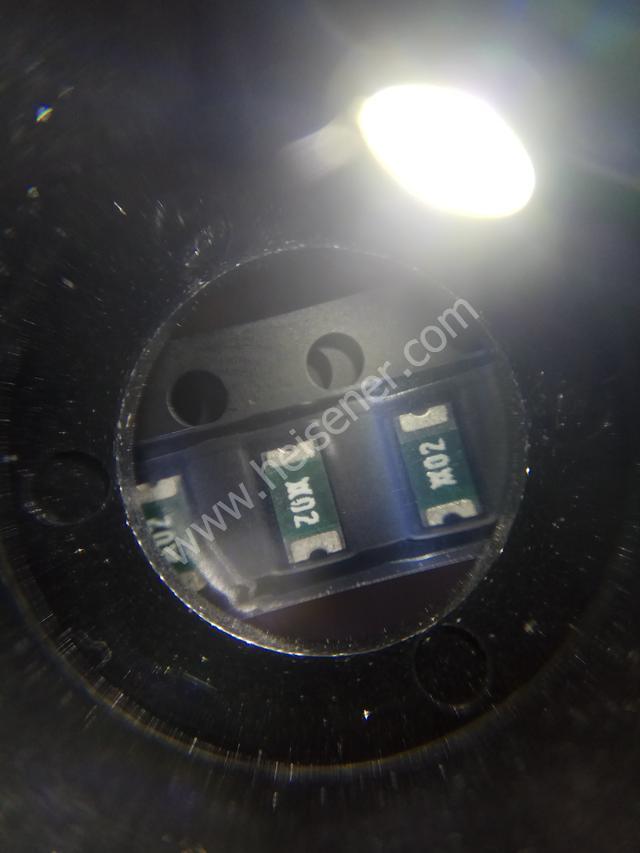

PTC RESET FUSE 24V 200MA 1206
Specifications
- Brand
- Littelfuse
- Package
- 1206 (3216 Metric), Concave
- Packaging
- —
- Weight
- —
Total Inventory
205pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how NANOSMDC020F-2 from Littelfuse fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Littelfuse Inc. | |
| Series | PolySwitch®, nanoSMDC020F | |
| Type | Polymeric | |
| Voltage - Max | 24V | |
| Current - Max | 100A | |
| Current - Hold (Ih) (Max) | 200mA | |
| Current - Trip (It) | 420mA | |
| Time to Trip | 0.1s | |
| Resistance - Initial (Ri) (Min) | 650 mOhms | |
| Resistance - Post Trip (R1) (Max) | 3.1 Ohms | |
| Resistance - 25°C (Typ) | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Ratings | - | |
| Mounting Type | Surface Mount | |
| Package / Case | 1206 (3216 Metric), Concave | |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.59mm) | |
| Height - Seated (Max) | - | |
| Thickness (Max) | 0.028" (0.70mm) | |
| Lead Spacing | - |
