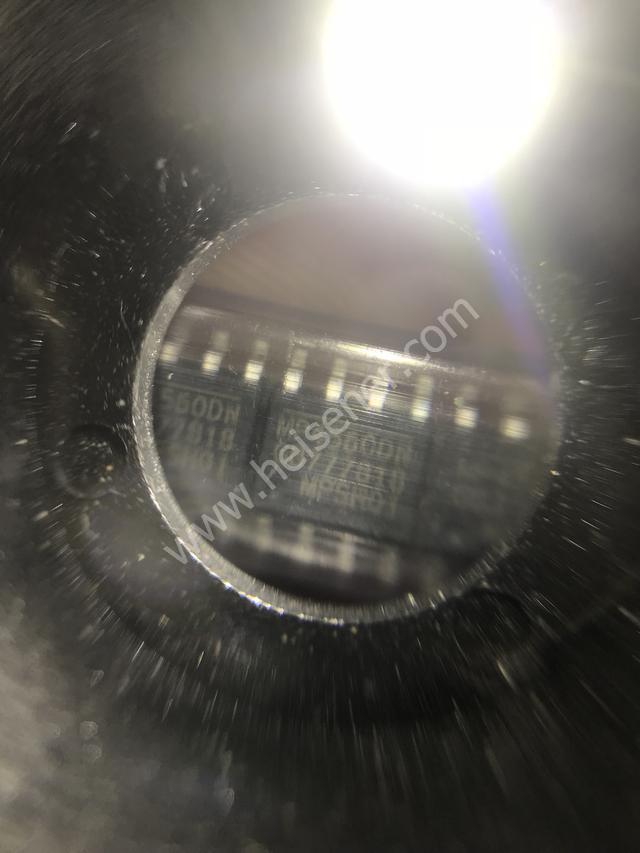

Send MessageMP4560DN-LF-Z
3.8V|2A
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
IC REG BUCK ADJUSTABLE 2A 8SOIC
Specifications
- Brand
- Monolithic Power Systems Inc.
- Package
- 8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Packaging
- —
- Weight
- —
Total Inventory
208pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how MP4560DN-LF-Z from Monolithic Power Systems Inc. fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Monolithic Power Systems Inc. | |
| Series | - | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 3.8V | |
| Voltage - Input (Max) | 55V | |
| Voltage - Output (Min/Fixed) | 0.8V | |
| Voltage - Output (Max) | 52V | |
| Current - Output | 2A | |
| Frequency - Switching | Up to 2MHz | |
| Synchronous Rectifier | No | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | |
| Supplier Device Package | 8-SOIC-EP |
