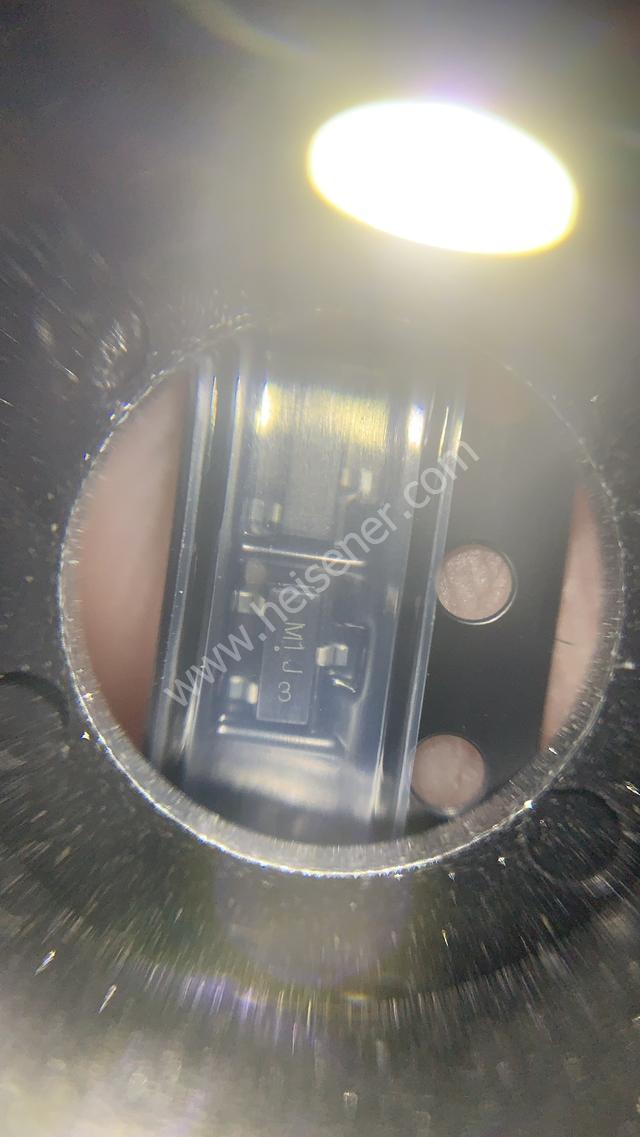

Send MessageMMBT2369LT1G
15V|200mA|225mW
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
TRANS NPN 15V 0.2A SOT23
Specifications
- Brand
- ON Semiconductor
- Package
- TO-236-3, SC-59, SOT-23-3
- Packaging
- —
- Weight
- —
Total Inventory
46,352pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how MMBT2369LT1G from ON Semiconductor fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Transistor Type | NPN | |
| Current - Collector (Ic) (Max) | 200mA | |
| Voltage - Collector Emitter Breakdown (Max) | 15V | |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 1mA, 10mA | |
| Current - Collector Cutoff (Max) | 400nA | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 10mA, 350mV | |
| Power - Max | 225mW | |
| Frequency - Transition | - | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Supplier Device Package | SOT-23-3 (TO-236) |
