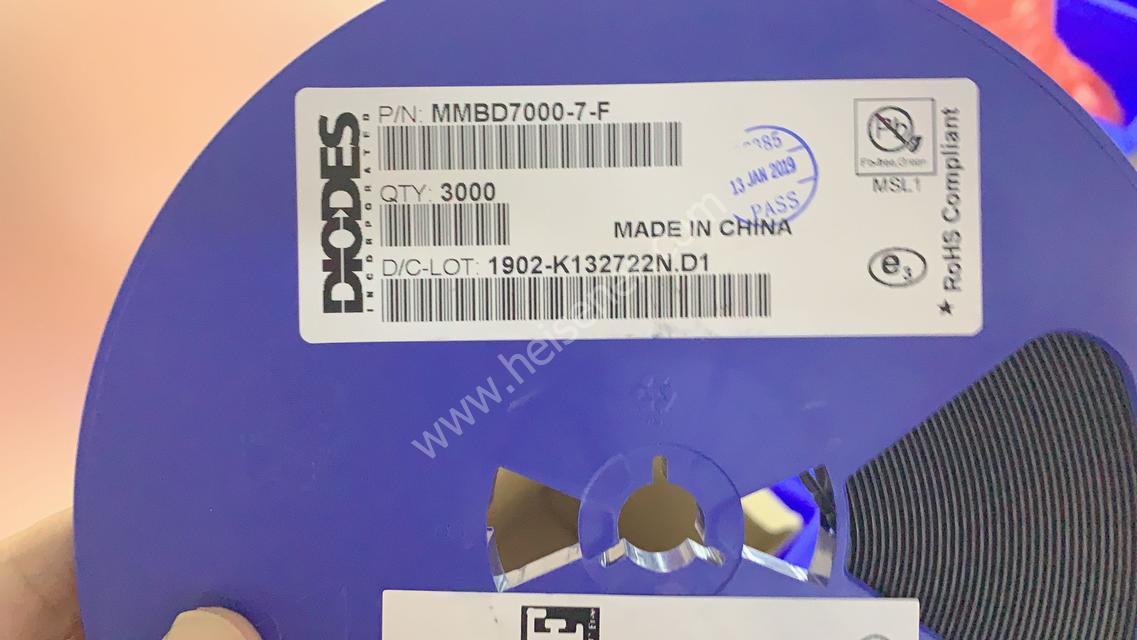

Send MessageMMBD7000-7-F
75V|300mA (DC)
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
DIODE ARRAY GP 75V 300MA SOT23-3
Specifications
- Brand
- Diodes Incorporated
- Package
- TO-236-3, SC-59, SOT-23-3
- Packaging
- —
- Weight
- —
Total Inventory
114,917pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how MMBD7000-7-F from Diodes Incorporated fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| Diode Configuration | 1 Pair Series Connection | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 75V | |
| Current - Average Rectified (Io) (per Diode) | 300mA (DC) | |
| Voltage - Forward (Vf) (Max) @ If | 1.25V @ 150mA | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 4ns | |
| Current - Reverse Leakage @ Vr | 1µA @ 50V | |
| Operating Temperature - Junction | -65°C ~ 150°C | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Supplier Device Package | SOT-23-3 |
