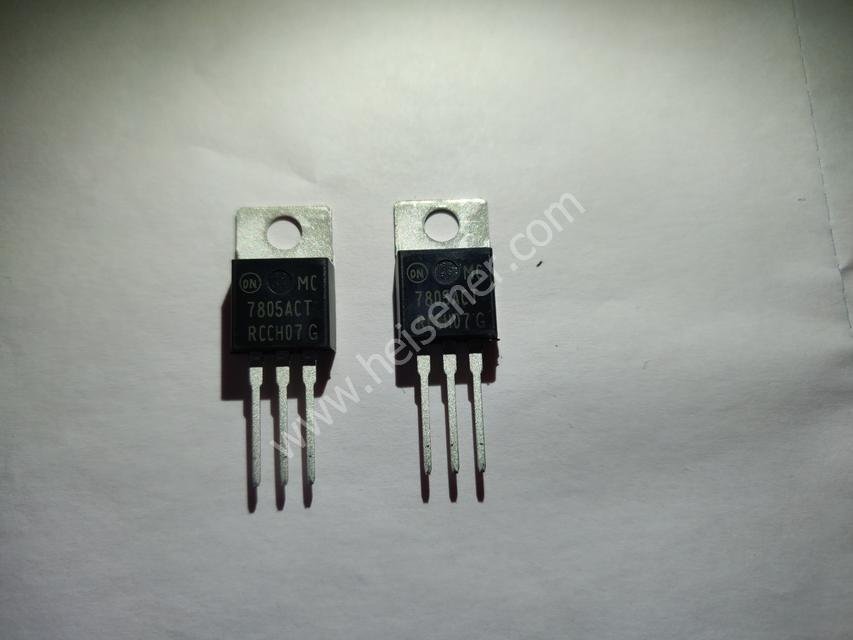

Send MessageMC7805ACTG
35V|1A
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
IC REG LINEAR 5V 1A TO220AB
Specifications
- Brand
- ON Semiconductor
- Package
- TO-220-3
- Packaging
- —
- Weight
- —
Total Inventory
323pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how MC7805ACTG from ON Semiconductor fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Output Configuration | Positive | |
| Output Type | Fixed | |
| Number of Regulators | 1 | |
| Voltage - Input (Max) | 35V | |
| Voltage - Output (Min/Fixed) | 5V | |
| Voltage - Output (Max) | - | |
| Voltage Dropout (Max) | 2V @ 1A (Typ) | |
| Current - Output | 1A | |
| Current - Quiescent (Iq) | 6mA | |
| Current - Supply (Max) | - | |
| PSRR | 83dB (120Hz) | |
| Control Features | - | |
| Protection Features | Over Temperature, Short Circuit | |
| Operating Temperature | 0°C ~ 125°C | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 | |
| Supplier Device Package | TO-220AB |
