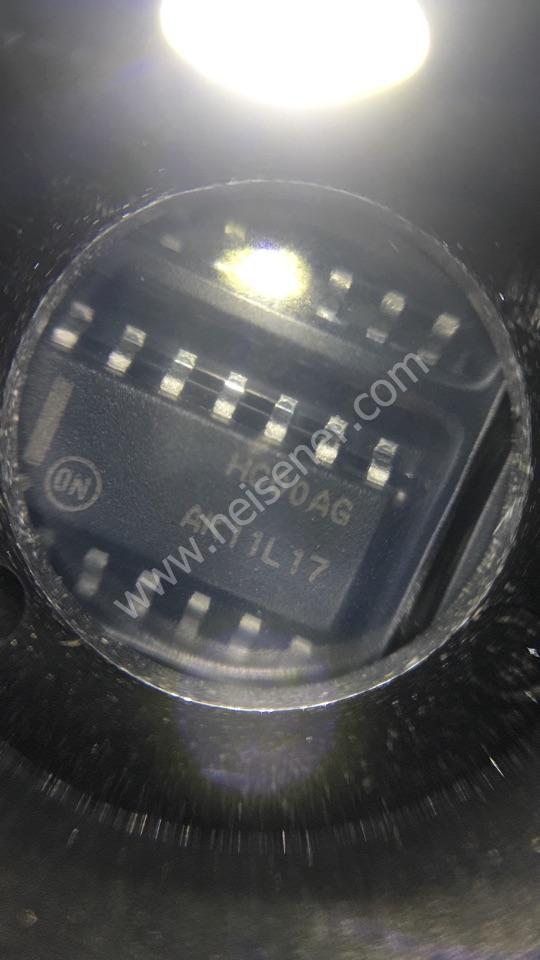

Send MessageMC74HC00AD
2V ~ 6V|1µA
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
IC GATE NAND 4CH 2-INP 14SOIC
Specifications
- Brand
- ON Semiconductor
- Package
- 14-SOIC
- Packaging
- —
- Weight
- —
Total Inventory
276pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how MC74HC00AD from ON Semiconductor fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | ON Semiconductor | |
| Series | 74HC | |
| Logic Type | NAND Gate | |
| Number of Circuits | 4 | |
| Number of Inputs | 2 | |
| Features | - | |
| Voltage - Supply | 2V ~ 6V | |
| Current - Quiescent (Max) | 1µA | |
| Current - Output High, Low | 5.2mA, 5.2mA | |
| Logic Level - Low | 0.5V ~ 1.8V | |
| Logic Level - High | 1.5V ~ 4.2V | |
| Max Propagation Delay @ V, Max CL | 13ns @ 6V, 50pF | |
| Operating Temperature | -55°C ~ 125°C | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | 14-SOIC | |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
Recommended Products
RES SMD 165 OHM 1W 1812 WIDE
RES SMD 196K OHM 1% 1/2W 1206
XTAL OSC XO 66.6666MHZ CMOS SMD
MEMS OSC XO 7.3728MHZ H/LV-CMOS
CPS22-NO00A10-SNCCWTWF-AI0YMVAR-W1019-S
SWITCH PUSH SPST-NO 100MA 42V
NMP CONFIGURABLE POWER SUPPLY 12
0.8A SYNCHRONOUS STEP-UP DC/DC C
TVS DIODE 28V 45.4V DO214AB
CONN RING CIRC 10-12AWG CRIMP
.050'' BOARD SPACERS
Datasheet & Documents
mc74hc00afg.pdf
PDF Document · 7 pages
