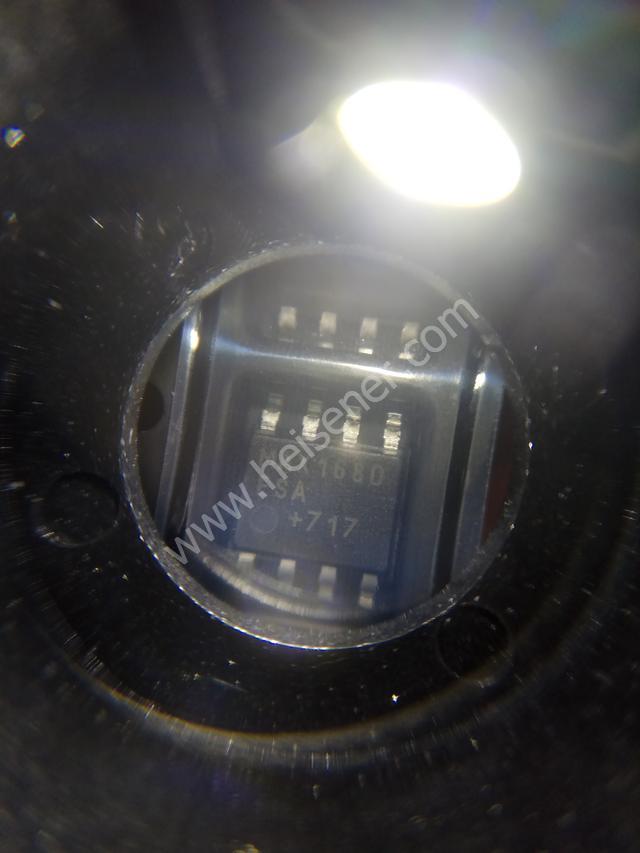

Send MessageMAX1680ESA
2V|125mA
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
IC REG CHARGE PUMP INV 8SOIC
Specifications
- Brand
- Maxim Integrated
- Package
- 8-SOIC (0.154", 3.90mm Width)
- Packaging
- —
- Weight
- —
Total Inventory
226pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how MAX1680ESA from Maxim Integrated fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Maxim Integrated | |
| Series | - | |
| Function | Ratiometric | |
| Output Configuration | Positive or Negative | |
| Topology | Charge Pump | |
| Output Type | Fixed | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 2V | |
| Voltage - Input (Max) | 5.5V | |
| Voltage - Output (Min/Fixed) | -Vin, 2Vin | |
| Voltage - Output (Max) | - | |
| Current - Output | 125mA | |
| Frequency - Switching | 125kHz, 250kHz | |
| Synchronous Rectifier | No | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | |
| Supplier Device Package | 8-SOIC |
