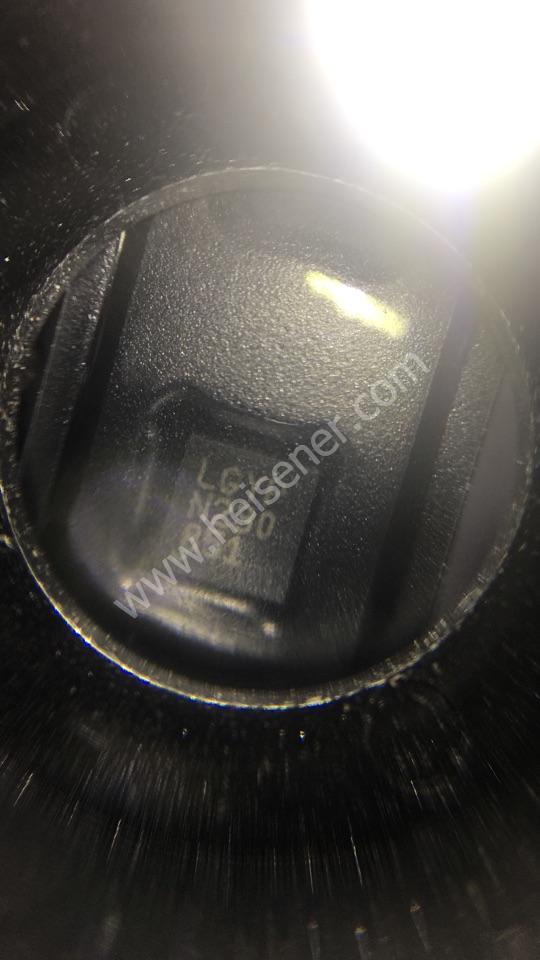

Send MessageLT3045EDD-PBF
20V|500mA
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
IC REG LINEAR 0V 500MA 10DFN
Specifications
- Brand
- Linear Technology/Analog Devices
- Package
- 10-WFDFN Exposed Pad
- Packaging
- —
- Weight
- —
Total Inventory
20,070pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how LT3045EDD-PBF from Linear Technology/Analog Devices fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Linear Technology/Analog Devices | |
| Series | - | |
| Output Configuration | Positive | |
| Output Type | Programmable | |
| Number of Regulators | 1 | |
| Voltage - Input (Max) | 20V | |
| Voltage - Output (Min/Fixed) | 0V | |
| Voltage - Output (Max) | 15V | |
| Voltage Dropout (Max) | 0.45V @ 500mA | |
| Current - Output | 500mA | |
| Current - Quiescent (Iq) | 20µA | |
| Current - Supply (Max) | 25mA | |
| PSRR | 117dB ~ 53dB (120Hz ~ 10MHz) | |
| Control Features | Enable, Power Good, Soft Start | |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 10-WFDFN Exposed Pad | |
| Supplier Device Package | 10-DFN (3x3) |
