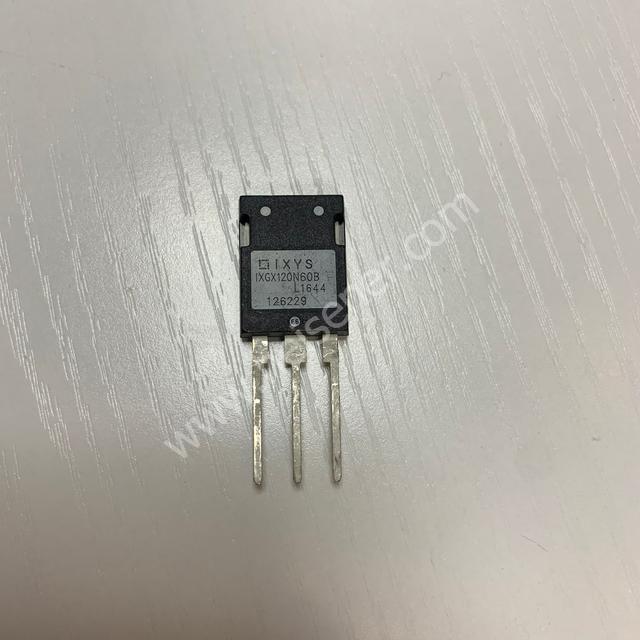

Send MessageIXGX120N60B
600V|200A|660W
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
IGBT 600V 200A 660W TO247
Specifications
- Brand
- IXYS
- Package
- TO-247-3
- Packaging
- —
- Weight
- —
Total Inventory
394pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how IXGX120N60B from IXYS fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | IXYS | |
| Series | HiPerFAST™ | |
| IGBT Type | PT | |
| Voltage - Collector Emitter Breakdown (Max) | 600V | |
| Current - Collector (Ic) (Max) | 200A | |
| Current - Collector Pulsed (Icm) | 300A | |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 120A | |
| Power - Max | 660W | |
| Switching Energy | 2.4mJ (on), 5.5mJ (off) | |
| Input Type | Standard | |
| Gate Charge | 350nC | |
| Td (on/off) @ 25°C | 60ns/200ns | |
| Test Condition | 480V, 100A, 2.4Ohm, 15V | |
| Reverse Recovery Time (trr) | - | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |
| Package / Case | TO-247-3 | |
| Supplier Device Package | PLUS247™-3 |
