Send MessageIXGH10N300
3000V|18A|100W
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount

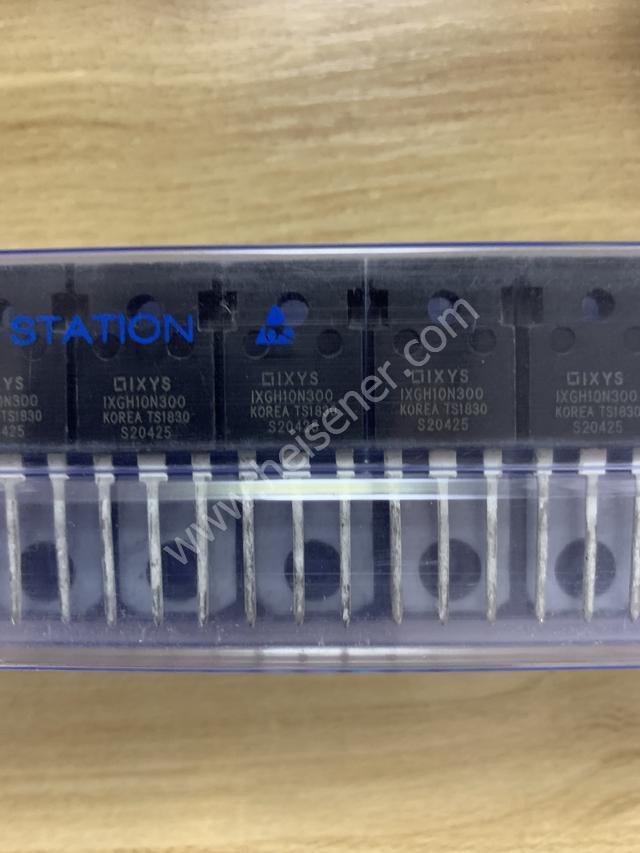

IGBT 3000V 18A 100W TO247AD
Specifications
- Brand
- IXYS
- Package
- TO-247-3
- Packaging
- —
- Weight
- —
Total Inventory
162pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how IXGH10N300 from IXYS fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | IXYS | |
| Series | - | |
| IGBT Type | - | |
| Voltage - Collector Emitter Breakdown (Max) | 3000V | |
| Current - Collector (Ic) (Max) | 18A | |
| Current - Collector Pulsed (Icm) | 40A | |
| Vce(on) (Max) @ Vge, Ic | 5.2V @ 15V, 30A | |
| Power - Max | 100W | |
| Switching Energy | - | |
| Input Type | Standard | |
| Gate Charge | 32nC | |
| Td (on/off) @ 25°C | - | |
| Test Condition | - | |
| Reverse Recovery Time (trr) | - | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |
| Package / Case | TO-247-3 | |
| Supplier Device Package | TO-247AD (IXGH) |
