Send MessageIXFX180N10
100V|180A (Tc)|560W (Tc)
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount

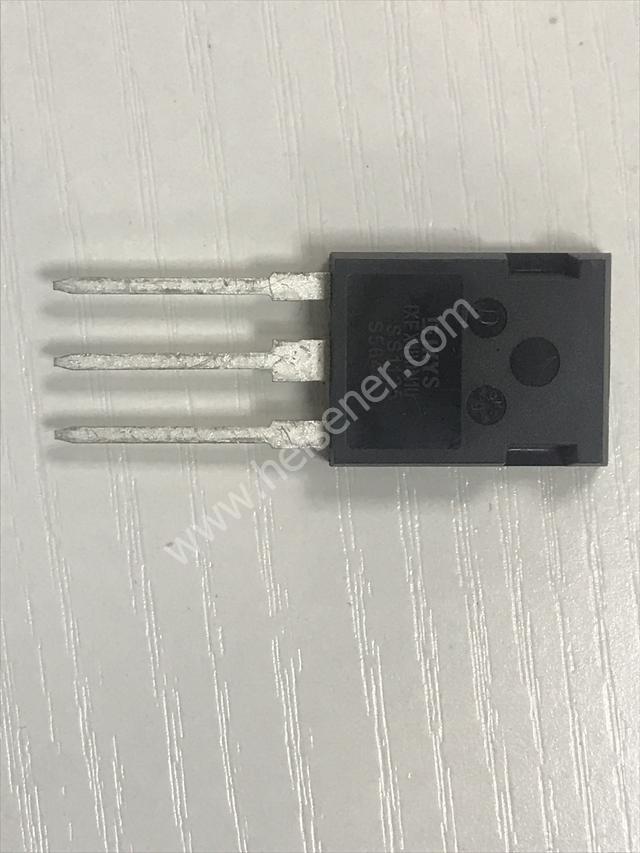

MOSFET N-CH 100V 180A PLUS247
Specifications
- Brand
- IXYS
- Package
- PLUS247™-3
- Packaging
- —
- Weight
- —
Total Inventory
303pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how IXFX180N10 from IXYS fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | IXYS | |
| Series | HiPerFET™ | |
| FET Type | N-Channel | |
| Technology | MOSFET (Metal Oxide) | |
| Drain to Source Voltage (Vdss) | 100V | |
| Current - Continuous Drain (Id) @ 25°C | 180A (Tc) | |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | |
| Rds On (Max) @ Id, Vgs | 8mOhm @ 90A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 8mA | |
| Gate Charge (Qg) (Max) @ Vgs | 390nC @ 10V | |
| Vgs (Max) | ±20V | |
| Input Capacitance (Ciss) (Max) @ Vds | 10900pF @ 25V | |
| FET Feature | - | |
| Power Dissipation (Max) | 560W (Tc) | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |
| Supplier Device Package | PLUS247™-3 | |
| Package / Case | TO-247-3 |
Recommended Products
RES 249 OHM 1/2W 1% AXIAL
RES SMD 127 OHM 0.1% 1/20W 0201
MEMS OSC XO 66.6666MHZ CMOS SMD
MEMS OSC XO 37.5000MHZ H/LV-CMOS
CAP CER 0402 43PF 50V ULTRA STAB
CAP ALUM 2900UF 50V SCREW
LED CYAN CLEAR T-1 3/4 T/H
LED ORANGE DIFFUSED 3MM T/H
IC QUAD LV COMPARATOR 14-SOIC
CONN HEADER 13POS SNGL 2MM SMD
Datasheet & Documents
ixfx180n10.pdf
PDF Document · 5 pages
