Send MessageIXBT12N300HV
3000V|30A|160W
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount

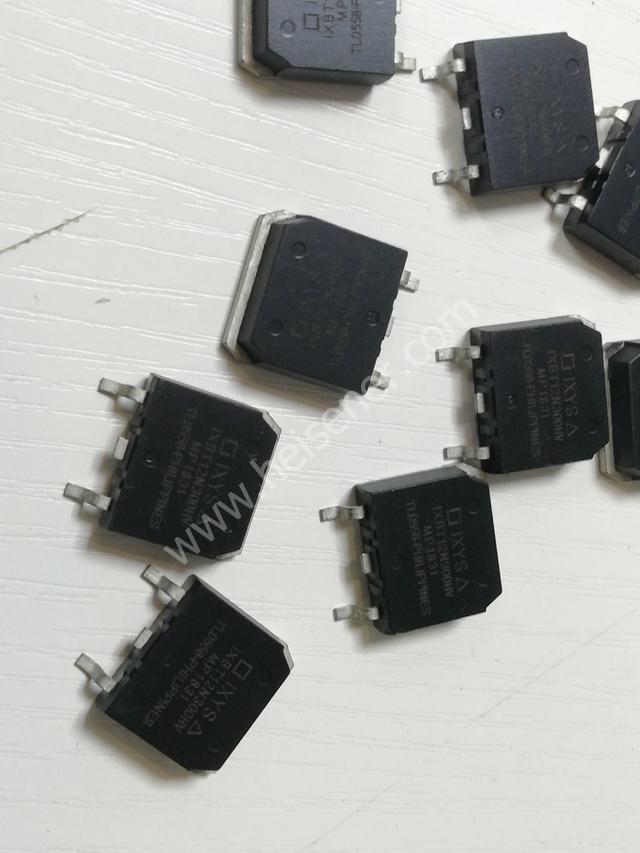

IGBT 3000V 30A 160W TO268
Specifications
- Brand
- IXYS
- Package
- TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
- Packaging
- —
- Weight
- —
Total Inventory
434pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how IXBT12N300HV from IXYS fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | IXYS | |
| Series | BIMOSFET™ | |
| IGBT Type | - | |
| Voltage - Collector Emitter Breakdown (Max) | 3000V | |
| Current - Collector (Ic) (Max) | 30A | |
| Current - Collector Pulsed (Icm) | 100A | |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 12A | |
| Power - Max | 160W | |
| Switching Energy | - | |
| Input Type | Standard | |
| Gate Charge | 62nC | |
| Td (on/off) @ 25°C | 64ns/180ns | |
| Test Condition | 1250V, 12A, 10Ohm, 15V | |
| Reverse Recovery Time (trr) | 1.4µs | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA | |
| Supplier Device Package | TO-268 |
