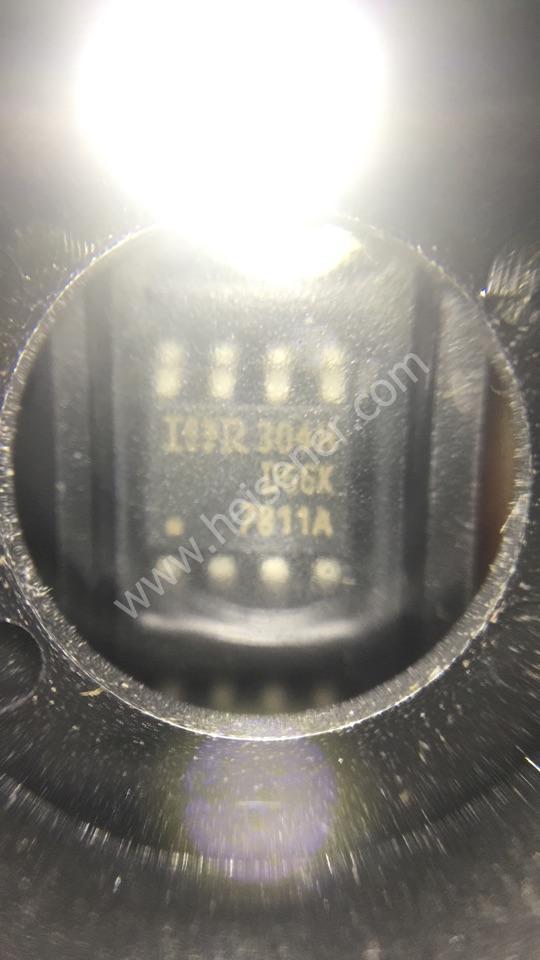

Send MessageIRF7811ATRPBF
28V|11A (Ta)|2.5W (Ta)
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
MOSFET N-CH 28V 11A 8-SOIC
Specifications
- Brand
- Infineon Technologies
- Package
- 8-SO
- Packaging
- —
- Weight
- —
Total Inventory
489pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how IRF7811ATRPBF from Infineon Technologies fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Infineon Technologies | |
| Series | HEXFET® | |
| FET Type | N-Channel | |
| Technology | MOSFET (Metal Oxide) | |
| Drain to Source Voltage (Vdss) | 28V | |
| Current - Continuous Drain (Id) @ 25°C | 11A (Ta) | |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V | |
| Rds On (Max) @ Id, Vgs | 10mOhm @ 11A, 10V | |
| Vgs(th) (Max) @ Id | 3V @ 250µA | |
| Gate Charge (Qg) (Max) @ Vgs | 26nC @ 4.5V | |
| Vgs (Max) | ±12V | |
| Input Capacitance (Ciss) (Max) @ Vds | 1760pF @ 15V | |
| FET Feature | - | |
| Power Dissipation (Max) | 2.5W (Ta) | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | 8-SO | |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
Recommended Products
RES 10K OHM 1/8W .5% AXIAL
RES 10.7K OHM 1/4W 1% AXIAL
MEMS OSC XO 148.351648MHZ LVCMOS
MEMS OSC XO 4.0960MHZ H/LV-CMOS
CRYSTAL 12.288000 MHZ 20PF SMD
CPS19-NO00A10-SNCCWTNF-AI0CWVAR-W1011-S
SWITCH PUSH SPST-NO 100MA 42V
SWITCH PUSHBUTTON DPDT 1A 125V
LED XLAMP WARM WHITE 2850K 2SMD
IC LED DRIVER
DIODE ZENER 2.53V 200MW SOD523
Datasheet & Documents
irf7811apbf.pdf
PDF Document · 10 pages
