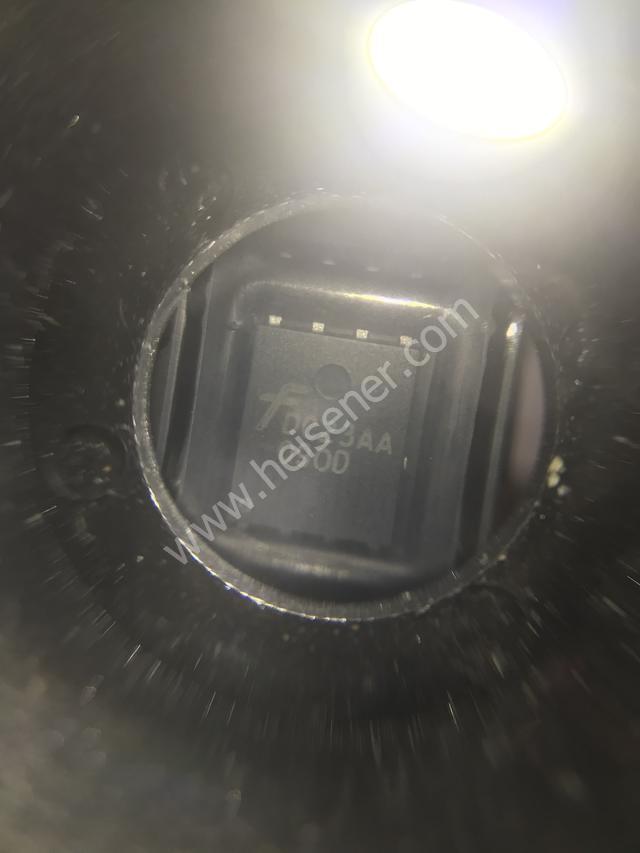

Send MessageFDMS8558S
25V|33A (Ta), 90A (Tc)|2.5W (Ta), 78W (Tc)
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
MOSFET N-CH 25V 33A 8-PQFN
Specifications
- Brand
- Fairchild/ON Semiconductor
- Package
- 8-PQFN (5x6), Power56
- Packaging
- —
- Weight
- —
Total Inventory
36,480pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how FDMS8558S from Fairchild/ON Semiconductor fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Fairchild/ON Semiconductor | |
| Series | PowerTrench?, SyncFET? | |
| FET Type | N-Channel | |
| Technology | MOSFET (Metal Oxide) | |
| Drain to Source Voltage (Vdss) | 25V | |
| Current - Continuous Drain (Id) @ 25°C | 33A (Ta), 90A (Tc) | |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | |
| Rds On (Max) @ Id, Vgs | 1.5 mOhm @ 33A, 10V | |
| Vgs(th) (Max) @ Id | 2.2V @ 1mA | |
| Gate Charge (Qg) (Max) @ Vgs | 81nC @ 10V | |
| Vgs (Max) | ±12V | |
| Input Capacitance (Ciss) (Max) @ Vds | 5118pF @ 13V | |
| FET Feature | - | |
| Power Dissipation (Max) | 2.5W (Ta), 78W (Tc) | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | 8-PQFN (5x6), Power56 | |
| Package / Case | 8-PowerTDFN |
