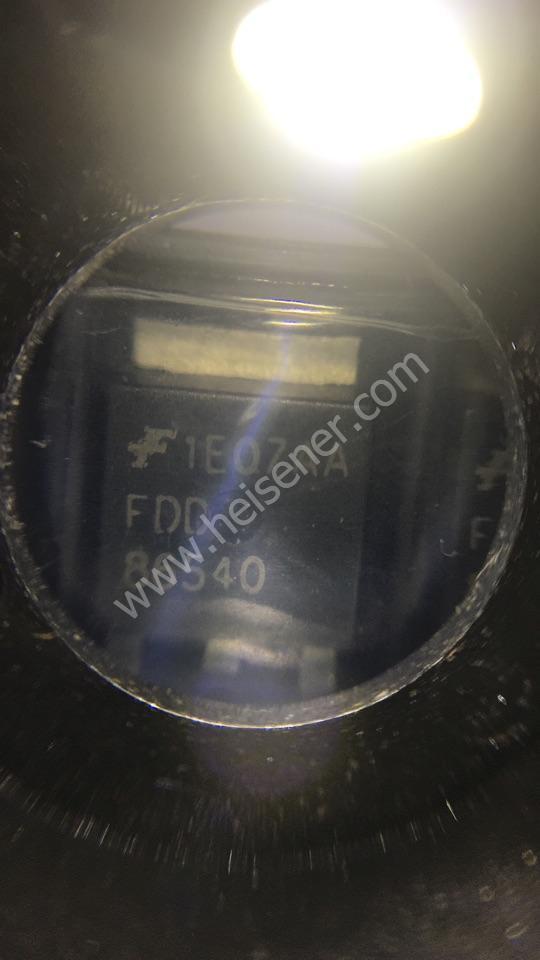

Send MessageFDD86540
60V|21.5A (Ta), 50A (Tc)|3.1W (Ta), 127W (Tc)
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
MOSFET N-CH 60V 50A DPAK-3
Specifications
- Brand
- Fairchild/ON Semiconductor
- Package
- D-PAK (TO-252AA)
- Packaging
- —
- Weight
- —
Total Inventory
4,336pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how FDD86540 from Fairchild/ON Semiconductor fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Fairchild/ON Semiconductor | |
| Series | PowerTrench? | |
| FET Type | N-Channel | |
| Technology | MOSFET (Metal Oxide) | |
| Drain to Source Voltage (Vdss) | 60V | |
| Current - Continuous Drain (Id) @ 25°C | 21.5A (Ta), 50A (Tc) | |
| Drive Voltage (Max Rds On, Min Rds On) | 8V, 10V | |
| Rds On (Max) @ Id, Vgs | 4.1 mOhm @ 21.5A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 250µA | |
| Gate Charge (Qg) (Max) @ Vgs | 90nC @ 10V | |
| Vgs (Max) | ±20V | |
| Input Capacitance (Ciss) (Max) @ Vds | 6340pF @ 30V | |
| FET Feature | - | |
| Power Dissipation (Max) | 3.1W (Ta), 127W (Tc) | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | D-PAK (TO-252AA) | |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
