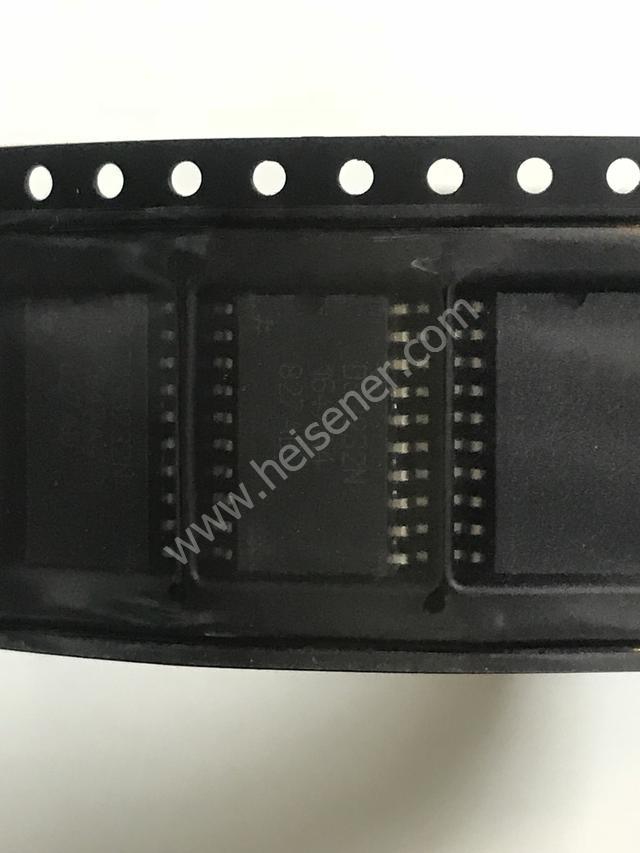

Send MessageDS3232SN
2.3V ~ 5.5V|120µA ~ 160µA @ 3.3V ~ 5.5V
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
IC RTC CLK/CALENDAR I2C 20-SOIC
Specifications
- Brand
- Maxim Integrated
- Package
- 20-SOIC (0.295", 7.50mm Width)
- Packaging
- —
- Weight
- —
Total Inventory
2,897pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how DS3232SN from Maxim Integrated fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Maxim Integrated | |
| Series | - | |
| Type | Clock/Calendar | |
| Features | Alarm, Leap Year, Square Wave Output, SRAM, TCXO/Crystal | |
| Memory Size | 236B | |
| Time Format | HH:MM:SS (12/24 hr) | |
| Date Format | YY-MM-DD-dd | |
| Interface | I²C, 2-Wire Serial | |
| Voltage - Supply | 2.3V ~ 5.5V | |
| Voltage - Supply, Battery | 2.3V ~ 5.5V | |
| Current - Timekeeping (Max) | 120µA ~ 160µA @ 3.3V ~ 5.5V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) | |
| Supplier Device Package | 20-SOIC |
