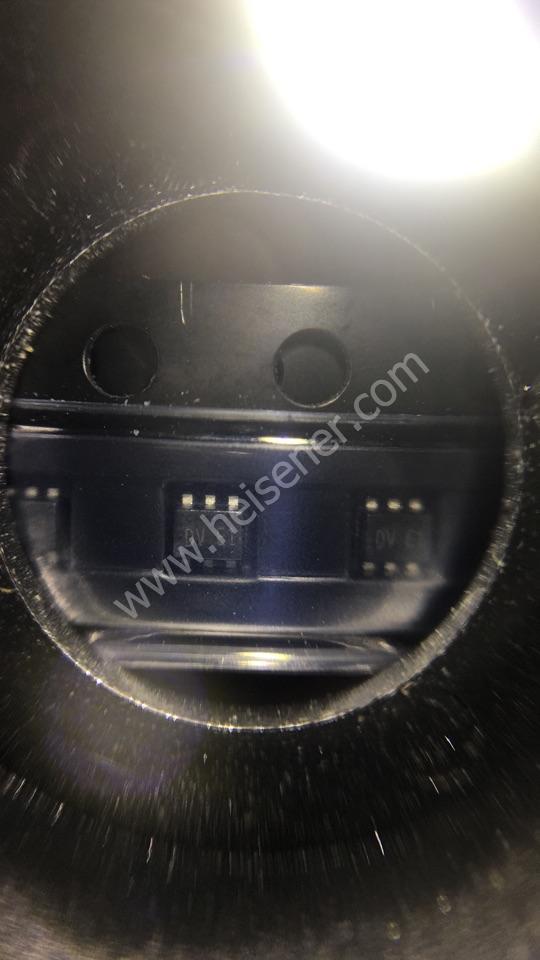

Send MessageDMN32D2LV-7
30V|400mA|400mW
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
MOSFET 2N-CH 30V 0.4A SOT-563
Specifications
- Brand
- Diodes Incorporated
- Package
- SOT-563, SOT-666
- Packaging
- —
- Weight
- —
Total Inventory
485pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how DMN32D2LV-7 from Diodes Incorporated fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| FET Type | 2 N-Channel (Dual) | |
| FET Feature | Logic Level Gate | |
| Drain to Source Voltage (Vdss) | 30V | |
| Current - Continuous Drain (Id) @ 25°C | 400mA | |
| Rds On (Max) @ Id, Vgs | 1.2Ohm @ 100mA, 4V | |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA | |
| Gate Charge (Qg) (Max) @ Vgs | - | |
| Input Capacitance (Ciss) (Max) @ Vds | 39pF @ 3V | |
| Power - Max | 400mW | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | SOT-563, SOT-666 | |
| Supplier Device Package | SOT-563 |
