Send MessageDG641DY
3V ~ 15V|10nA
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount

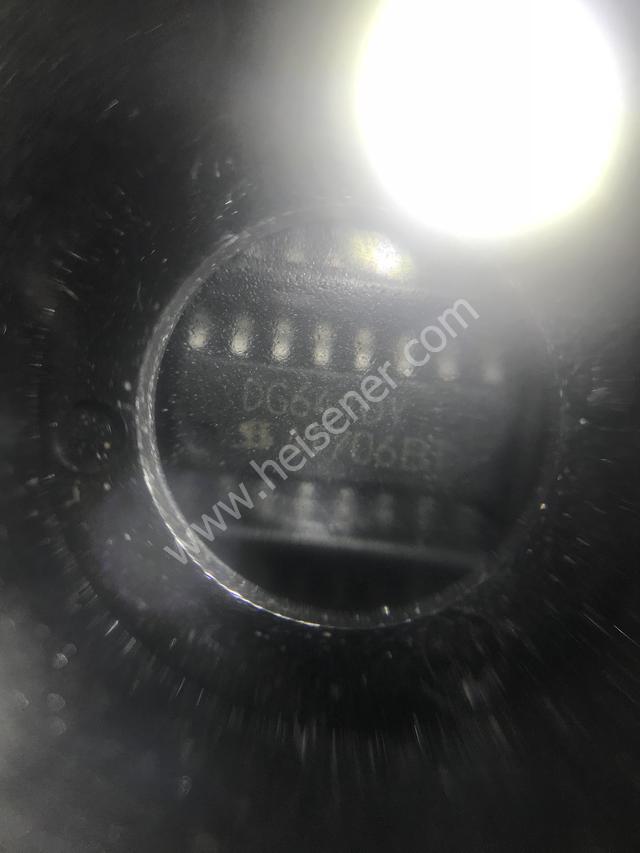

IC VIDEO SWITCH SPST 16SOIC
Specifications
- Brand
- Vishay Siliconix
- Package
- 16-SOIC (0.154", 3.90mm Width)
- Packaging
- —
- Weight
- —
Total Inventory
435pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how DG641DY from Vishay Siliconix fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Vishay Siliconix | |
| Series | - | |
| Switch Circuit | SPST - NO | |
| Multiplexer/Demultiplexer Circuit | 1:1 | |
| Number of Circuits | 4 | |
| On-State Resistance (Max) | 15Ohm | |
| Channel-to-Channel Matching (ΔRon) | 1Ohm | |
| Voltage - Supply, Single (V+) | 3V ~ 15V | |
| Voltage - Supply, Dual (V±) | ±3V ~ 15V | |
| Switch Time (Ton, Toff) (Max) | 70ns, 50ns | |
| -3db Bandwidth | 500MHz | |
| Charge Injection | 19pC | |
| Channel Capacitance (CS(off), CD(off)) | 12pF, 12pF | |
| Current - Leakage (IS(off)) (Max) | 10nA | |
| Crosstalk | -87dB @ 5MHz | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) | |
| Supplier Device Package | 16-SOIC |
