Send MessageCDSOD323-T15SC
15V|12A (8/20µs)|400W
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount

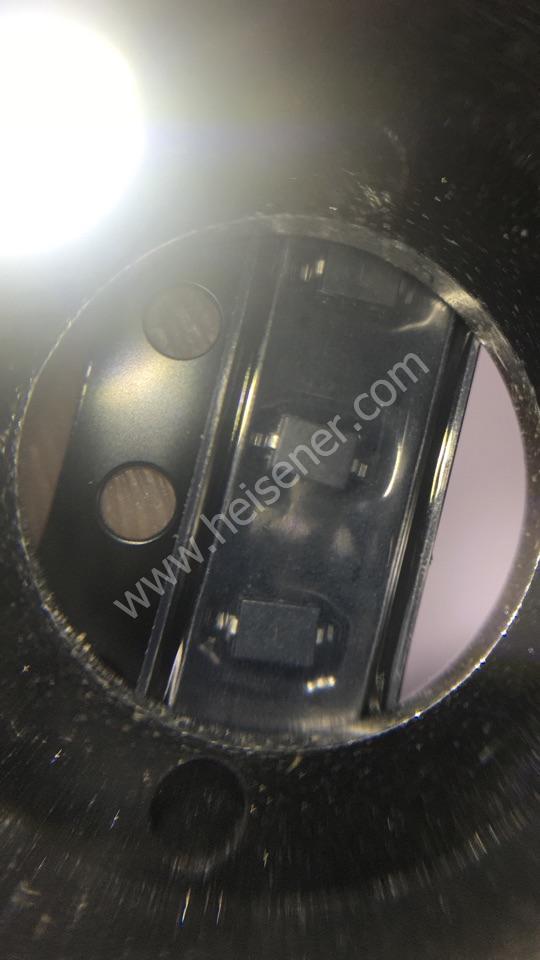

TVS DIODE 15V 33V SOD323
Specifications
- Brand
- Bourns
- Package
- SC-76, SOD-323
- Packaging
- —
- Weight
- —
Total Inventory
20,319pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how CDSOD323-T15SC from Bourns fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Bourns Inc. | |
| Series | - | |
| Type | Zener | |
| Unidirectional Channels | - | |
| Bidirectional Channels | 1 | |
| Voltage - Reverse Standoff (Typ) | 15V | |
| Voltage - Breakdown (Min) | 16.7V | |
| Voltage - Clamping (Max) @ Ipp | 33V (Typ) | |
| Current - Peak Pulse (10/1000µs) | 12A (8/20µs) | |
| Power - Peak Pulse | 400W | |
| Power Line Protection | No | |
| Applications | General Purpose | |
| Capacitance @ Frequency | 40pF @ 1MHz | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | SC-76, SOD-323 | |
| Supplier Device Package | SOD-323 |
