Send MessageBAV103-115
200V|250mA (DC)
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount

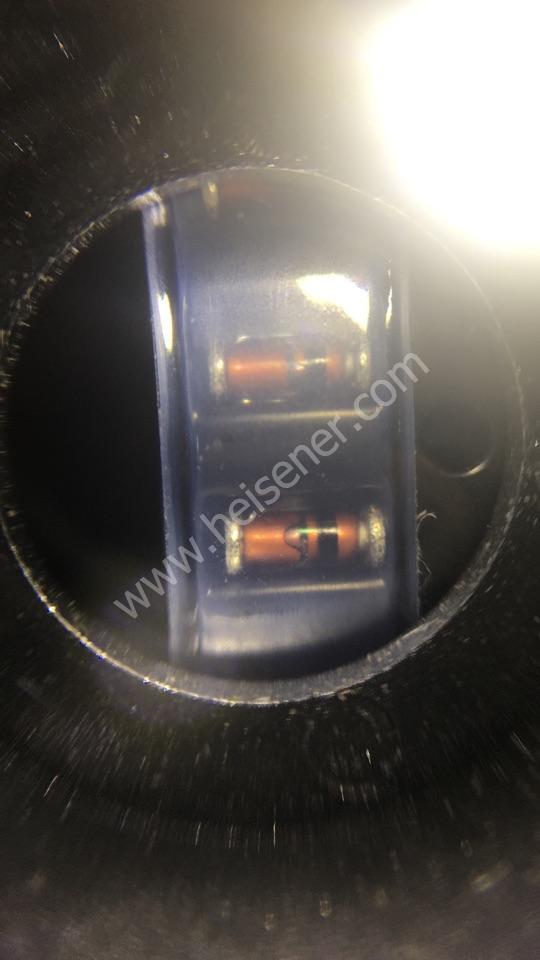

DIODE GEN PURP 200V 250MA LLDS
Specifications
- Brand
- Nexperia
- Package
- DO-213AC, MINI-MELF, SOD-80
- Packaging
- —
- Weight
- —
Total Inventory
33,063pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how BAV103-115 from Nexperia fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Nexperia USA Inc. | |
| Series | - | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 200V | |
| Current - Average Rectified (Io) | 250mA (DC) | |
| Voltage - Forward (Vf) (Max) @ If | 1.25V @ 200mA | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 50ns | |
| Current - Reverse Leakage @ Vr | 100nA @ 200V | |
| Capacitance @ Vr, F | 5pF @ 0V, 1MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 | |
| Supplier Device Package | LLDS; MiniMelf | |
| Operating Temperature - Junction | 175°C (Max) |
