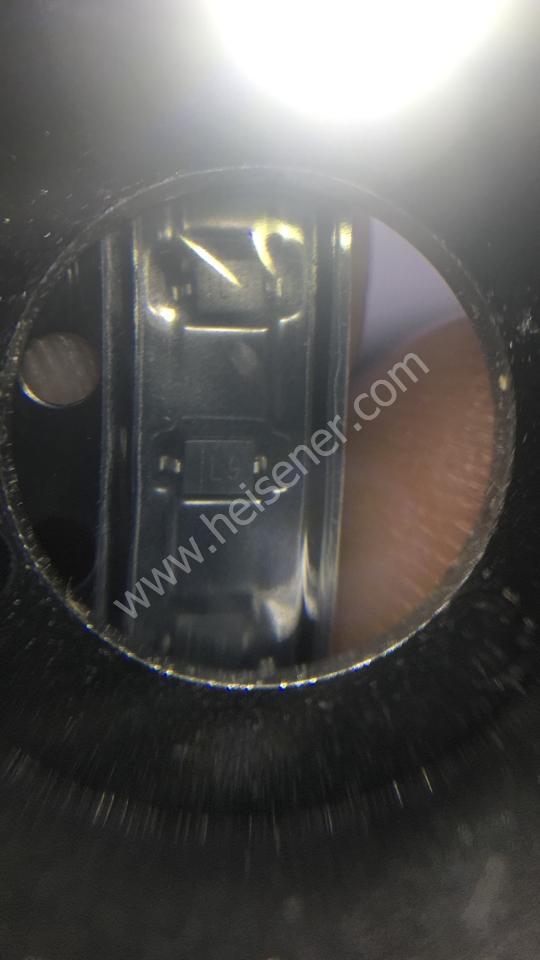

Send MessageBAT54WS-7-F
30V|100mA
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
DIODE SCHOTTKY 30V 100MA SOD323
Specifications
- Brand
- Diodes Incorporated
- Package
- SC-76, SOD-323
- Packaging
- —
- Weight
- —
Total Inventory
403,531pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how BAT54WS-7-F from Diodes Incorporated fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 30V | |
| Current - Average Rectified (Io) | 100mA | |
| Voltage - Forward (Vf) (Max) @ If | 1V @ 100mA | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Reverse Recovery Time (trr) | 5ns | |
| Current - Reverse Leakage @ Vr | 2µA @ 25V | |
| Capacitance @ Vr, F | 10pF @ 1V, 1MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | SC-76, SOD-323 | |
| Supplier Device Package | SOD-323 | |
| Operating Temperature - Junction | -65°C ~ 150°C |
