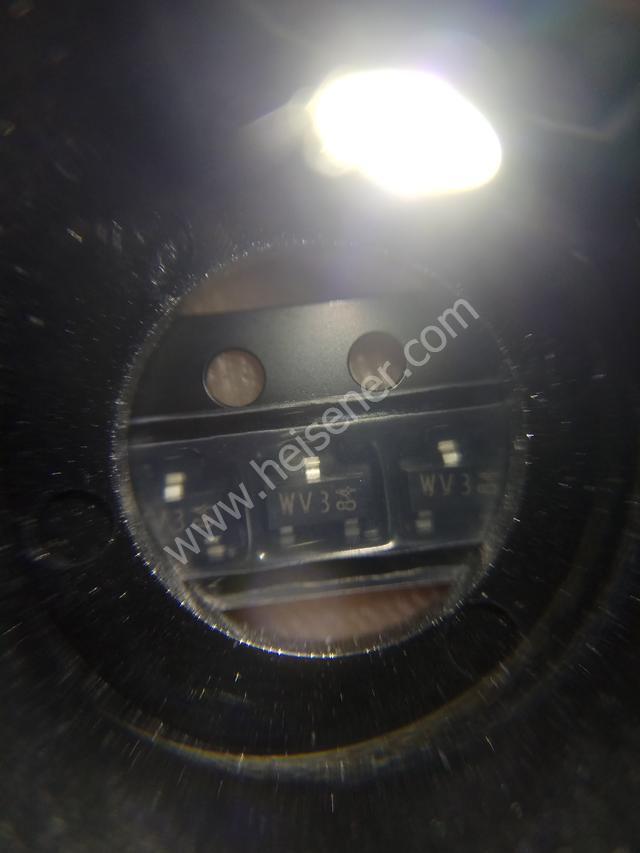

Send MessageBAT54A
30V|200mA
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
DIODE ARRAY SCHOTTKY 30V SOT23-3
Specifications
- Brand
- Fairchild/ON Semiconductor
- Package
- TO-236-3, SC-59, SOT-23-3
- Packaging
- —
- Weight
- —
Total Inventory
28,124,820pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how BAT54A from Fairchild/ON Semiconductor fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Fairchild/ON Semiconductor | |
| Series | - | |
| Diode Configuration | 1 Pair Common Anode | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 30V | |
| Current - Average Rectified (Io) (per Diode) | 200mA | |
| Voltage - Forward (Vf) (Max) @ If | 800mV @ 100mA | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Reverse Recovery Time (trr) | 5ns | |
| Current - Reverse Leakage @ Vr | 2µA @ 25V | |
| Operating Temperature - Junction | -55°C ~ 150°C | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Supplier Device Package | SOT-23-3 (TO-236) |
