Send MessageAPE30024
24VDC|6A
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount

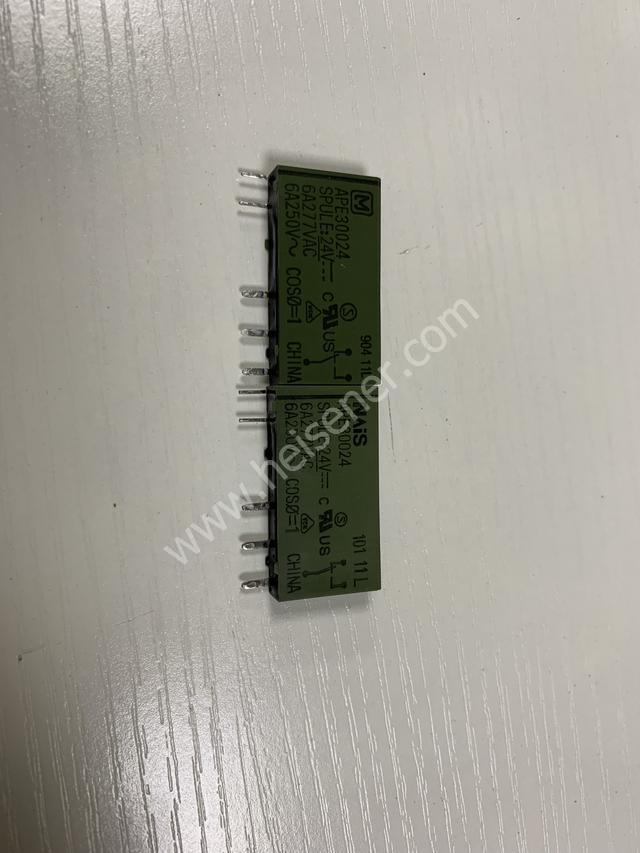

RELAY GEN PURPOSE SPDT 6A 24V
Specifications
- Brand
- Panasonic Electric Works
- Package
- —
- Packaging
- —
- Weight
- —
Total Inventory
204pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how APE30024 from Panasonic Electric Works fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Panasonic Electric Works | |
| Series | APE | |
| Mounting Type | Through Hole | |
| Coil Voltage | 24VDC | |
| Contact Form | SPDT (1 Form C) | |
| Contact Rating (Current) | 6A | |
| Switching Voltage | 250VAC - Max | |
| Coil Current | 7.0mA | |
| Coil Type | Non Latching | |
| Features | - | |
| Termination Style | PC Pin | |
| Seal Rating | - | |
| Coil Insulation | - | |
| Must Operate Voltage | 15.84 VDC | |
| Must Release Voltage | 1.2 VDC | |
| Operate Time | 8ms | |
| Release Time | 4ms | |
| Operating Temperature | -40°C ~ 85°C | |
| Contact Material | Silver Alloy | |
| Relay Type | General Purpose |
