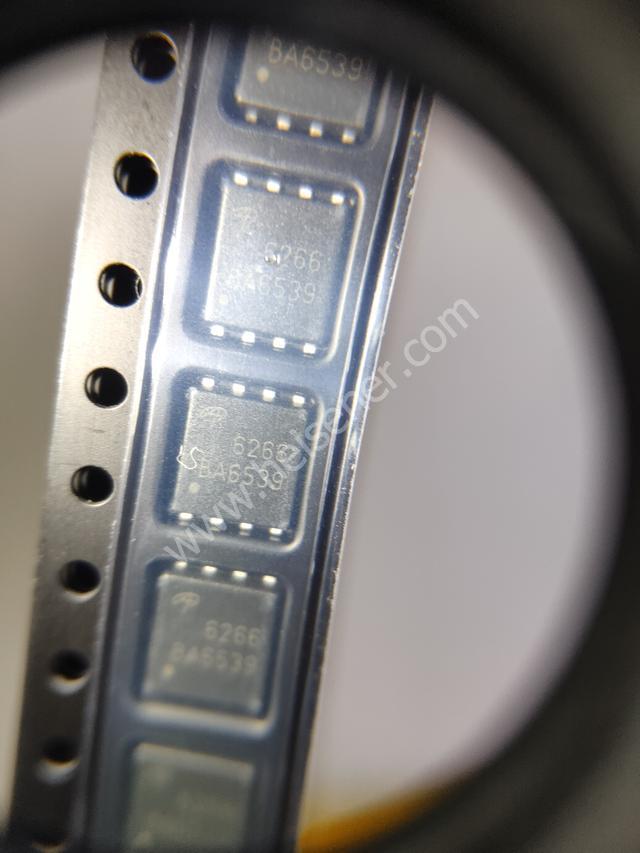

Send MessageAON6266
60V|13A (Ta), 30A (Tc)|5W (Ta), 38W (Tc)
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
MOSFET N-CH 60V 13A 8DFN
Specifications
- Brand
- Alpha & Omega Semiconductor Inc.
- Package
- 8-DFN (5x6)
- Packaging
- —
- Weight
- —
Total Inventory
5,152pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how AON6266 from Alpha & Omega Semiconductor Inc. fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Alpha & Omega Semiconductor Inc. | |
| Series | AlphaMOS | |
| FET Type | N-Channel | |
| Technology | MOSFET (Metal Oxide) | |
| Drain to Source Voltage (Vdss) | 60V | |
| Current - Continuous Drain (Id) @ 25°C | 13A (Ta), 30A (Tc) | |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | |
| Rds On (Max) @ Id, Vgs | 15 mOhm @ 20A, 10V | |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | |
| Gate Charge (Qg) (Max) @ Vgs | 30nC @ 10V | |
| Vgs (Max) | ±20V | |
| Input Capacitance (Ciss) (Max) @ Vds | 1340pF @ 30V | |
| FET Feature | - | |
| Power Dissipation (Max) | 5W (Ta), 38W (Tc) | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | 8-DFN (5x6) | |
| Package / Case | 8-PowerSMD, Flat Leads |
Recommended Products
FIXED IND 100NH 1.295A 75 MOHM
FIXED IND 390NH 1.225A 120 MOHM
VS CONFIGURABLE POWER SUPPLY
DC DC CONVERTER 36V 400W
IC FF D-TYPE SNGL 8BIT 20SOP
IC FPGA 168 I/O 256FBGA
DIODE, SCHOTTKY, STANDARD, 3A, 3
IC MCU 8BIT 1KB EEPROM 8TSSOP
ACT90MH53SC
CONN EDGE DUAL FMALE 86POS 0.156
Datasheet & Documents
aon6266.pdf
PDF Document · 6 pages
