Send MessageAO3407A
30V|4.3A (Ta)|1.4W (Ta)
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount

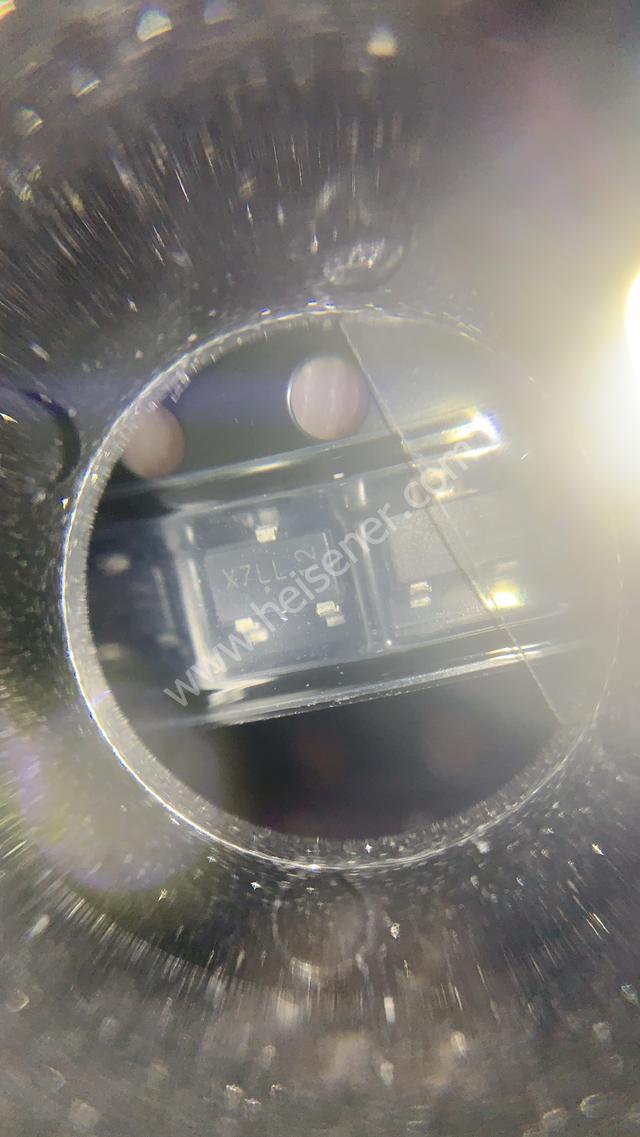

MOSFET P-CH 30V 4.3A SOT23
Specifications
- Brand
- Alpha & Omega Semiconductor Inc.
- Package
- SOT-23-3L
- Packaging
- —
- Weight
- —
Total Inventory
1,652,040pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how AO3407A from Alpha & Omega Semiconductor Inc. fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Alpha & Omega Semiconductor Inc. | |
| Series | - | |
| FET Type | P-Channel | |
| Technology | MOSFET (Metal Oxide) | |
| Drain to Source Voltage (Vdss) | 30V | |
| Current - Continuous Drain (Id) @ 25°C | 4.3A (Ta) | |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | |
| Rds On (Max) @ Id, Vgs | 48 mOhm @ 4.3A, 10V | |
| Vgs(th) (Max) @ Id | 3V @ 250µA | |
| Gate Charge (Qg) (Max) @ Vgs | 16nC @ 10V | |
| Vgs (Max) | ±20V | |
| Input Capacitance (Ciss) (Max) @ Vds | 830pF @ 15V | |
| FET Feature | - | |
| Power Dissipation (Max) | 1.4W (Ta) | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | SOT-23-3L | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
