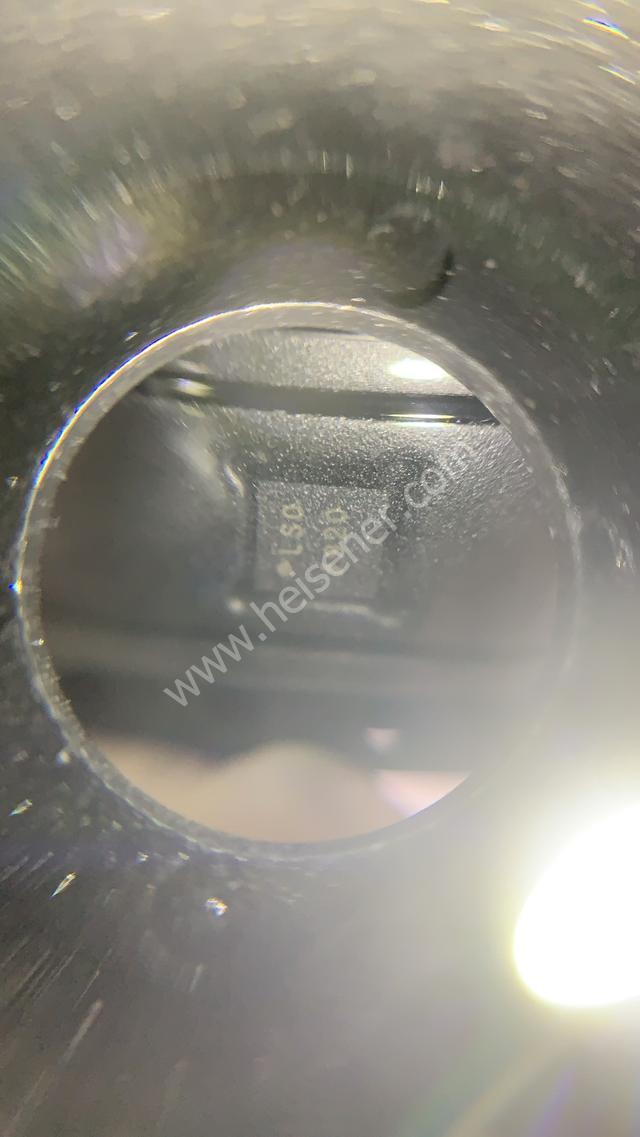

Send MessageADP1763ACPZ-R7
1.98V|3A
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
IC REG LINEAR POS ADJ 3A 16LFCSP
Specifications
- Brand
- Analog Devices
- Package
- 16-WFQFN Exposed Pad
- Packaging
- —
- Weight
- —
Total Inventory
2,482pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how ADP1763ACPZ-R7 from Analog Devices fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Output Configuration | Positive | |
| Output Type | Adjustable | |
| Number of Regulators | 1 | |
| Voltage - Input (Max) | 1.98V | |
| Voltage - Output (Min/Fixed) | 0.5V | |
| Voltage - Output (Max) | 1.5V | |
| Voltage Dropout (Max) | 0.145V @ 3A | |
| Current - Output | 3A | |
| Current - Quiescent (Iq) | 8mA | |
| Current - Supply (Max) | 16mA | |
| PSRR | 62dB ~ 33dB (10kHz ~ 1MHz) | |
| Control Features | Enable, Power Good, Soft Start | |
| Protection Features | Current Limit, Thermal Overload | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 16-WFQFN Exposed Pad | |
| Supplier Device Package | 16-LFCSP-WQ (3x3) |
Recommended Products
RES SMD 2.8K OHM 0.1% 1/4W 1206
RES SMD 3.74 OHM 0.25% 1/4W 1206
RES SMD 634 OHM 0.5% 1/16W 0603
XTAL OSC XO 65.0000MHZ LVDS SMD
DC DC CONVERTER 2V 10W
DIODE ZENER 91V 1.25W DO214AC
SURGE STOPPER W/DIODE 16MSOP
HEADER BERGSTIK R/A
CONN RCPT 1POS WALL MNT W/PINS
VOLTAGE REGULATOR
Datasheet & Documents
adp1763acpz-1-5-r7.pdf
PDF Document · 19 pages
