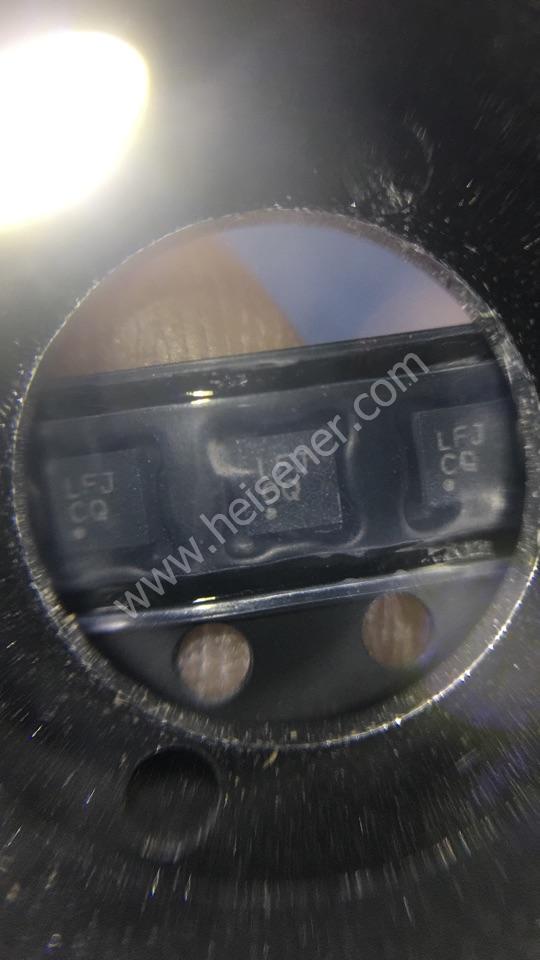

Send MessageADP151ACPZ-3-3-R7
5.5V|200mA
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
IC REG LINEAR 3.3V 200MA 6LFCSP
Specifications
- Brand
- Analog Devices
- Package
- 6-UDFN Exposed Pad, CSP
- Packaging
- —
- Weight
- —
Total Inventory
341pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how ADP151ACPZ-3-3-R7 from Analog Devices fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Output Configuration | Positive | |
| Output Type | Fixed | |
| Number of Regulators | 1 | |
| Voltage - Input (Max) | 5.5V | |
| Voltage - Output (Min/Fixed) | 3.3V | |
| Voltage - Output (Max) | - | |
| Voltage Dropout (Max) | 0.23V @ 200mA | |
| Current - Output | 200mA | |
| Current - Quiescent (Iq) | 20µA | |
| Current - Supply (Max) | 350µA | |
| PSRR | 70dB ~ 55dB (10kHz ~ 100kHz) | |
| Control Features | Enable | |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-UDFN Exposed Pad, CSP | |
| Supplier Device Package | 6-LFCSP-UD (2x2) |
