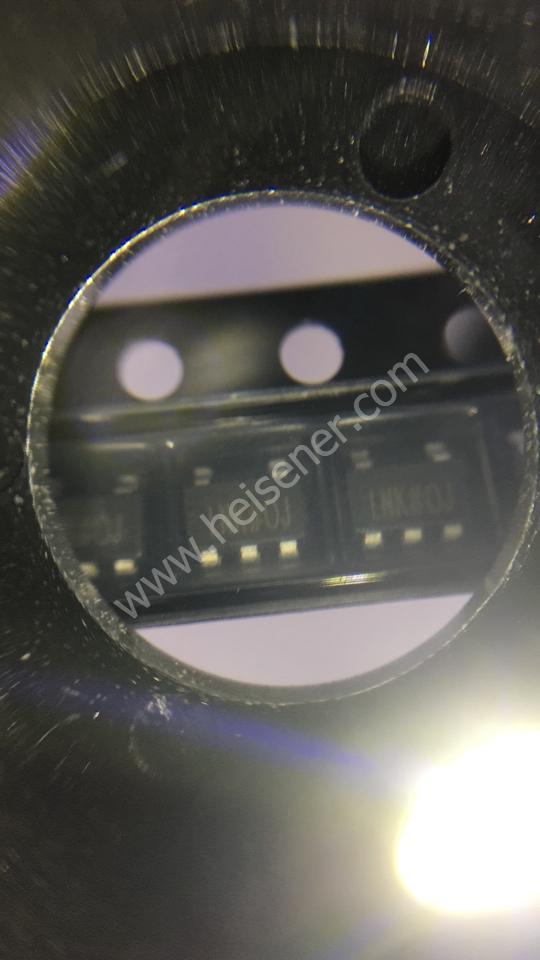

Send MessageADM7160AUJZ-3-3-R2
5.5V|200mA
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
IC REG LINEAR 3.3V 200MA TSOT5
Specifications
- Brand
- Analog Devices
- Package
- SOT-23-5 Thin, TSOT-23-5
- Packaging
- —
- Weight
- —
Total Inventory
690pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how ADM7160AUJZ-3-3-R2 from Analog Devices fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Output Configuration | Positive | |
| Output Type | Fixed | |
| Number of Regulators | 1 | |
| Voltage - Input (Max) | 5.5V | |
| Voltage - Output (Min/Fixed) | 3.3V | |
| Voltage - Output (Max) | - | |
| Voltage Dropout (Max) | 0.23V @ 200mA | |
| Current - Output | 200mA | |
| Current - Quiescent (Iq) | 20µA | |
| Current - Supply (Max) | 350µA | |
| PSRR | 54dB ~ 43dB (100kHz ~ 1MHz) | |
| Control Features | Enable | |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | |
| Operating Temperature | -40°C ~ 125°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 | |
| Supplier Device Package | TSOT-5 |
