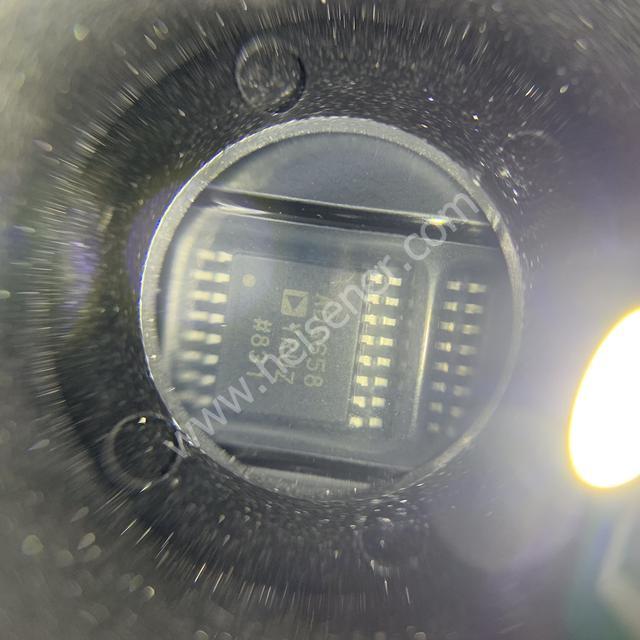

Send MessageADG658YRUZ
2V ~ 12V|200pA
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
IC MULTIPLEXER 8X1 16TSSOP
Specifications
- Brand
- Analog Devices
- Package
- 16-TSSOP (0.173", 4.40mm Width)
- Packaging
- —
- Weight
- —
Total Inventory
2,673pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how ADG658YRUZ from Analog Devices fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Switch Circuit | - | |
| Multiplexer/Demultiplexer Circuit | 8:1 | |
| Number of Circuits | 1 | |
| On-State Resistance (Max) | 75Ohm | |
| Channel-to-Channel Matching (ΔRon) | 1.3Ohm | |
| Voltage - Supply, Single (V+) | 2V ~ 12V | |
| Voltage - Supply, Dual (V±) | ±2V ~ 6V | |
| Switch Time (Ton, Toff) (Max) | 115ns, 45ns | |
| -3db Bandwidth | 210MHz | |
| Charge Injection | 2pC | |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 23pF | |
| Current - Leakage (IS(off)) (Max) | 200pA | |
| Crosstalk | - | |
| Operating Temperature | -40°C ~ 125°C (TA) | |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) | |
| Supplier Device Package | 16-TSSOP |
