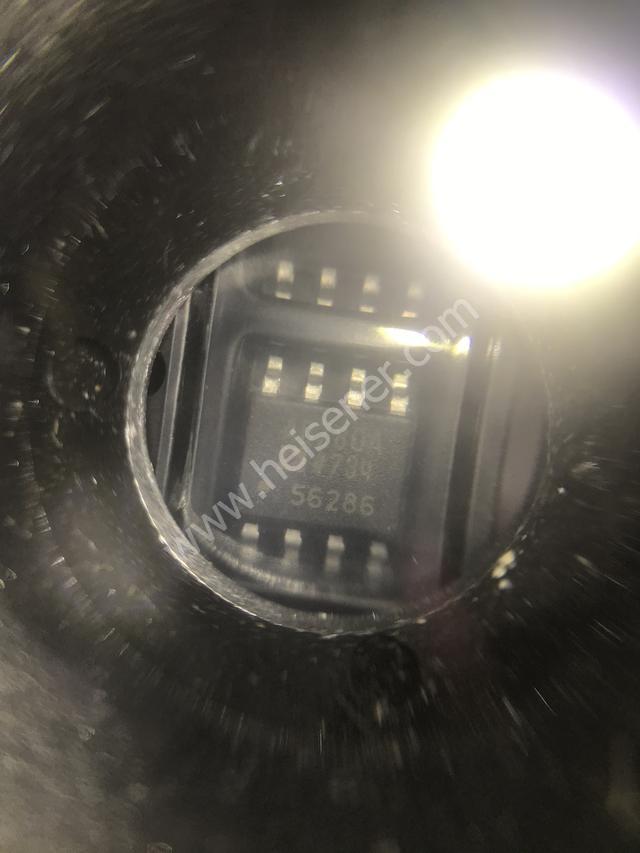

Send MessageAD780ARZ
±2.5V, ±3V|10mA
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
IC VREF SERIES/SHUNT PROG 8SOIC
Specifications
- Brand
- Analog Devices
- Package
- 8-SOIC (0.154", 3.90mm Width)
- Packaging
- —
- Weight
- —
Total Inventory
2,672pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how AD780ARZ from Analog Devices fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Reference Type | Series, Shunt | |
| Output Type | Programmable | |
| Voltage - Output (Min/Fixed) | ±2.5V, ±3V | |
| Voltage - Output (Max) | - | |
| Current - Output | 10mA | |
| Tolerance | ±0.2%, ±0.17% | |
| Temperature Coefficient | 7ppm/°C | |
| Noise - 0.1Hz to 10Hz | 4µVp-p | |
| Noise - 10Hz to 10kHz | - | |
| Voltage - Input | 4V ~ 36V | |
| Current - Supply | 1mA | |
| Current - Cathode | 1mA | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | |
| Supplier Device Package | 8-SOIC |
