Send MessageAD1580ART-REEL
1.225V|10mA
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount

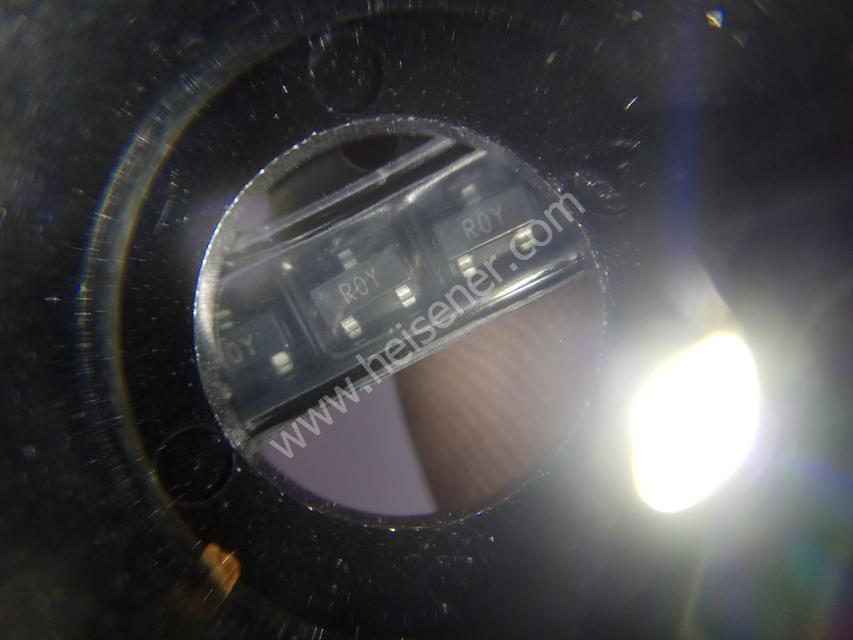

IC VREF SHUNT 1.225V SOT23
Specifications
- Brand
- Analog Devices
- Package
- TO-236-3, SC-59, SOT-23-3
- Packaging
- —
- Weight
- —
Total Inventory
410pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how AD1580ART-REEL from Analog Devices fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Reference Type | Shunt | |
| Output Type | Fixed | |
| Voltage - Output (Min/Fixed) | 1.225V | |
| Voltage - Output (Max) | - | |
| Current - Output | 10mA | |
| Tolerance | ±0.82% | |
| Temperature Coefficient | 100ppm/°C | |
| Noise - 0.1Hz to 10Hz | 5µVp-p | |
| Noise - 10Hz to 10kHz | 20µVrms | |
| Voltage - Input | - | |
| Current - Supply | - | |
| Current - Cathode | 50µA | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Supplier Device Package | SOT-23-3 |
