Send Message74LVC1G04Z-7
1.65V ~ 5.5V|200µA
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount

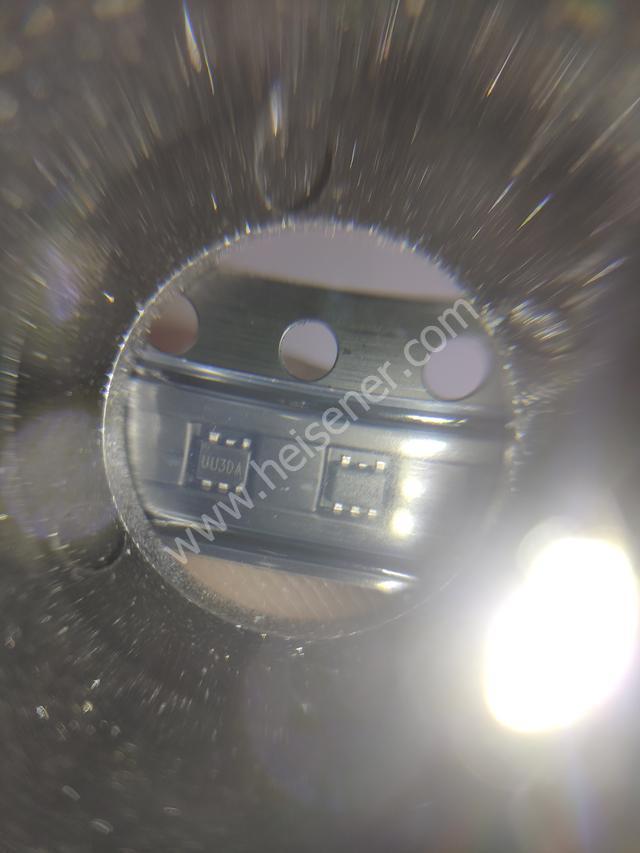

IC INVERTER 1CH 1-INP SOT553
Specifications
- Brand
- Diodes Incorporated
- Package
- SOT-553
- Packaging
- —
- Weight
- —
Total Inventory
125pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how 74LVC1G04Z-7 from Diodes Incorporated fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Diodes Incorporated | |
| Series | 74LVC | |
| Logic Type | Inverter | |
| Number of Circuits | 1 | |
| Number of Inputs | 1 | |
| Features | - | |
| Voltage - Supply | 1.65V ~ 5.5V | |
| Current - Quiescent (Max) | 200µA | |
| Current - Output High, Low | 32mA, 32mA | |
| Logic Level - Low | 0.7V ~ 0.8V | |
| Logic Level - High | 1.7V ~ 2V | |
| Max Propagation Delay @ V, Max CL | 1.6ns @ 5V, 50pF | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | SOT-553 | |
| Package / Case | SOT-553 |
