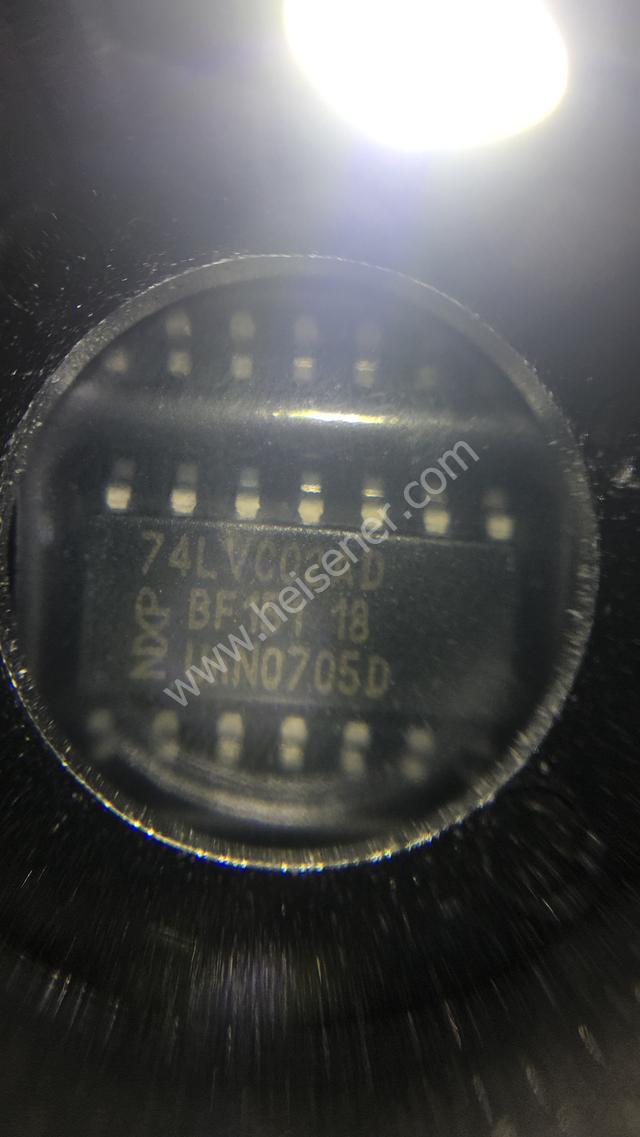

Send Message74LVC02AD-118
1.2V ~ 3.6V|40µA
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
IC GATE NOR 4CH 2-INP 14SO
Specifications
- Brand
- Nexperia
- Package
- 14-SO
- Packaging
- —
- Weight
- —
Total Inventory
7,490pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how 74LVC02AD-118 from Nexperia fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Nexperia USA Inc. | |
| Series | 74LVC | |
| Logic Type | NOR Gate | |
| Number of Circuits | 4 | |
| Number of Inputs | 2 | |
| Features | - | |
| Voltage - Supply | 1.2V ~ 3.6V | |
| Current - Quiescent (Max) | 40µA | |
| Current - Output High, Low | 24mA, 24mA | |
| Logic Level - Low | 0.12V ~ 0.8V | |
| Logic Level - High | 1.08V ~ 2V | |
| Max Propagation Delay @ V, Max CL | 4.4ns @ 3.3V, 50pF | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | 14-SO | |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
