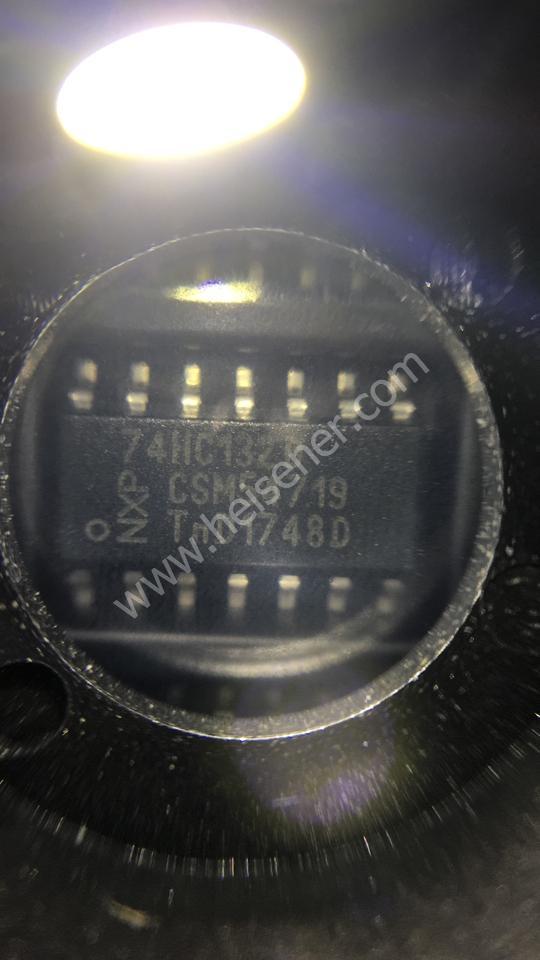

74HC132D-653
2V ~ 6V|2µA
原装正品全球货源快速交付品质认证技术支持批量优惠
IC GATE NAND SCHMITT 4CH 14SO
规格参数
- 品牌
- Nexperia
- 封装
- 14-SO
- 包装方式
- —
库存总量
6,824个
12小时发货
起订量：1 个
认证与授权
产品视频
了解 Nexperia 的 74HC132D-653 如何融入您的设计。我们的元件专家将介绍关键规格、品质认证及典型应用场景。
- 原厂采购，全程可追溯
- 严格的进料品质检验
- 具竞争力的价格 & 全球快速交货
- 专属应用工程技术支持
技术规格
| Manufacturer | Nexperia USA Inc. | |
| Series | 74HC | |
| Logic Type | NAND Gate | |
| Number of Circuits | 4 | |
| Number of Inputs | 2 | |
| Features | Schmitt Trigger | |
| Voltage - Supply | 2V ~ 6V | |
| Current - Quiescent (Max) | 2µA | |
| Current - Output High, Low | 5.2mA, 5.2mA | |
| Logic Level - Low | 0.3V ~ 1.2V | |
| Logic Level - High | 1.5V ~ 4.2V | |
| Max Propagation Delay @ V, Max CL | 21ns @ 6V, 50pF | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | 14-SO | |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
