Send Message2N7002-7-F
60V|115mA (Ta)|370mW (Ta)
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount

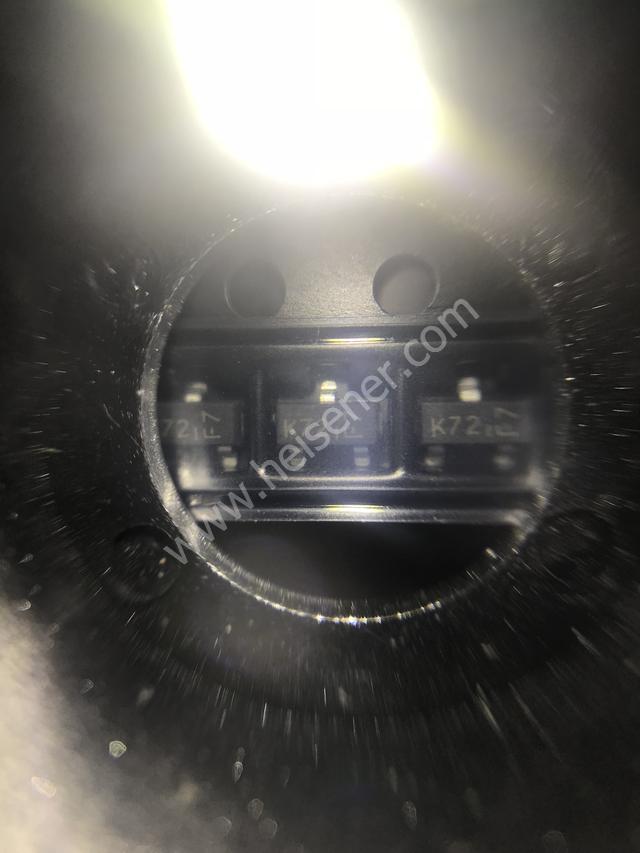

MOSFET N-CH 60V 115MA SOT23-3
Specifications
- Brand
- Diodes Incorporated
- Package
- SOT-23-3
- Packaging
- —
- Weight
- —
Total Inventory
6,194,922pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how 2N7002-7-F from Diodes Incorporated fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| FET Type | N-Channel | |
| Technology | MOSFET (Metal Oxide) | |
| Drain to Source Voltage (Vdss) | 60V | |
| Current - Continuous Drain (Id) @ 25°C | 115mA (Ta) | |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V | |
| Rds On (Max) @ Id, Vgs | 7.5Ohm @ 50mA, 5V | |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | |
| Gate Charge (Qg) (Max) @ Vgs | - | |
| Vgs (Max) | ±20V | |
| Input Capacitance (Ciss) (Max) @ Vds | 50pF @ 25V | |
| FET Feature | - | |
| Power Dissipation (Max) | 370mW (Ta) | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | SOT-23-3 | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
